745496 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

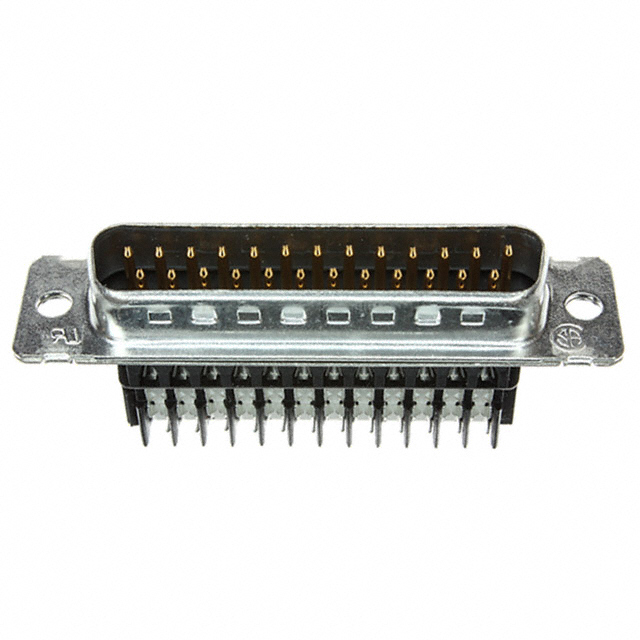

CONN D-SUB PLUG 25POS IDC
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Material | Color | Number of Rows [custom] | Contact Type | Termination | Connector Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Features | Current Rating (Amps) | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Mounting Type | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 26 AWG | 30 AWG | -55 C | 105 ░C | Thermoplastic Glass Filled | 250 V | Phosphor Bronze | Black | 2 | Signal | Discrete Wire IDC | Plug Male Pins | Housing/Shell (Unthreaded) | 30 Áin | 0.76 Ám | Grounding Indents | Varies by Wire Gauge | D-Sub | B DB | 3 | Gold | Free Hanging (In-Line) | 25 | UL94 V-0 |
