SG-8018 Series

Manufacturer: EPSON

Catalog

Catalog

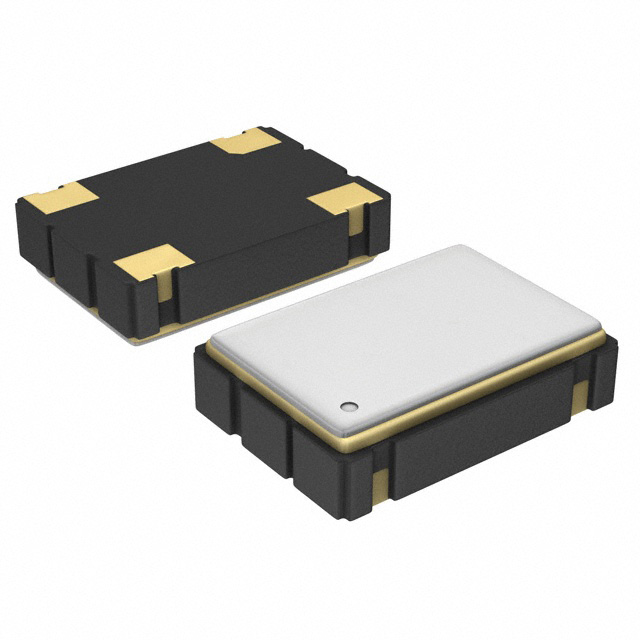

XTAL OSC XO 37.1250MHZ CMOS SMD

...

Part	Current - Supply (Disable) (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply (Max) [Max]	Package / Case	Function	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Base Resonator [custom]	Mounting Type	Output	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Height - Seated (Max) [Max]	Current - Supply (Disable) (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]
EPSON SG-8018CG 37.1250M-TJHPA3	3.5 mA	3.3 V	1.8 V	37.125 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable	0.031 in	0.8 mm	2.5 mm	0.079 in	0.098 in	2 mm	50 ppm	Crystal	Surface Mount	CMOS	2	2.5	4-SMD
EPSON SG-8018CA 25.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	25 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable	0.055 in		7 mm	0.197 "	0.276 "	5 mm	50 ppm	Crystal	Surface Mount	CMOS			4-SMD (7x5)	1.4 mm
EPSON SG-8018CG 1.0000M-TJHSA3		3.3 V	1.8 V	1 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Standby (Power Down)	0.031 in	0.8 mm	2.5 mm	0.079 in	0.098 in	2 mm	50 ppm	Crystal	Surface Mount	CMOS	2	2.5	4-SMD		1.1 µA
EPSON SG-8018CB 125.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	125 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable		1.3 mm	5 mm	0.126 in	0.197 in		50 ppm	Crystal	Surface Mount	CMOS						0.051 in	3.2 mm
EPSON SG-8018CA 50.0000M-TJHPAB	3.5 mA	3.3 V	1.8 V	50 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable	0.055 in		7 mm	0.197 "	0.276 "	5 mm	50 ppm	Crystal	Surface Mount	CMOS			4-SMD (7x5)	1.4 mm
EPSON SG-8018CB 32.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	32 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable		1.3 mm	5 mm	0.126 in	0.197 in		50 ppm	Crystal	Surface Mount	CMOS						0.051 in	3.2 mm
EPSON SG-8018CA 16.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	16 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable	0.055 in		7 mm	0.197 "	0.276 "	5 mm	50 ppm	Crystal	Surface Mount	CMOS			4-SMD (7x5)	1.4 mm
EPSON SG-8018CE 25.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	25 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable			3.2 mm	0.098 in	0.126 "	2.5 mm	50 ppm	Crystal	Surface Mount	CMOS	2.5	3.2	4-SMD			0.047 "		1.2 mm
EPSON SG-8018CE 33.0000M-TJHPA3	3.5 mA	3.3 V	1.8 V	33 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable			3.2 mm	0.098 in	0.126 "	2.5 mm	50 ppm	Crystal	Surface Mount	CMOS	2.5	3.2	4-SMD			0.047 "		1.2 mm
EPSON SG-8018CB 24.5760M-TJHPA3	3.5 mA	3.3 V	1.8 V	24.576 MHz	XO (Standard)	-40 C	105 ░C	6.8 mA	4-SMD No Lead	Enable/Disable		1.3 mm	5 mm	0.126 in	0.197 in		50 ppm	Crystal	Surface Mount	CMOS						0.051 in	3.2 mm
