THD0948 Series
Manufacturer: Delta Electronics
Beta
⌘K

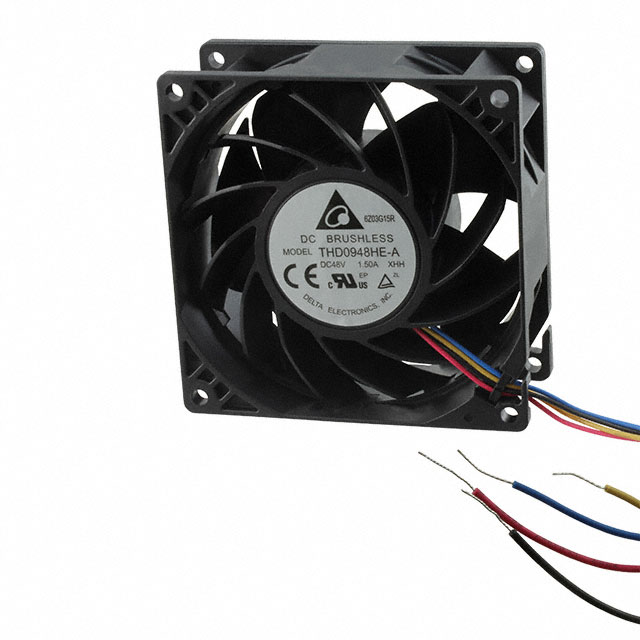

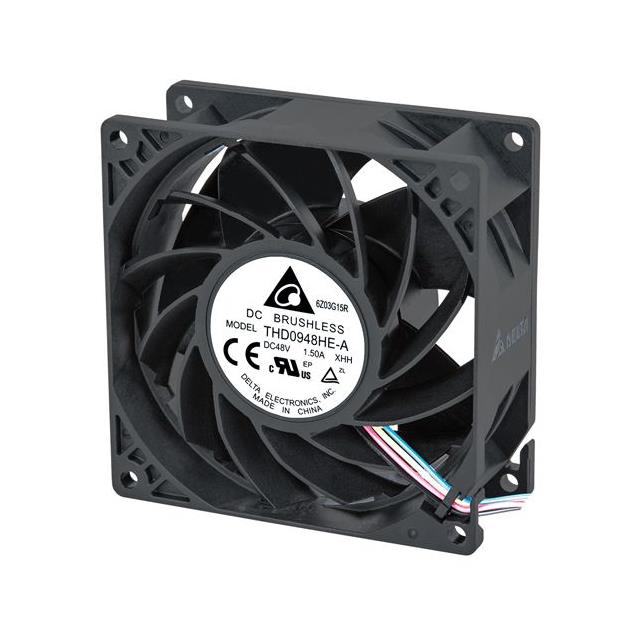

FAN AXIAL 92X38MM 48VDC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Current Rating (Amps) | RPM | Approval Agency | Noise | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Static Pressure | Static Pressure | Weight [custom] | Weight [custom] | Width [y] | Features | Fan Type | Power (Watts) | Air Flow | Air Flow | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Plastic | 75 VDC | 36 VDC | Plastic | 1.1 A | 13500 RPM | CE cURus TUV | 71 dB(A) | 92 mm | 92 mm | Ball | 3.435 in H2O | 855.6 Pa | 216.36 g | 0.477 lb | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial | 52.8 W | 5.11 m³/min | 182.4 CFM | 48 VDC | 70 °C | -25 °C | 4 Wire Leads |
 Delta Electronics | 70000 Hrs | Plastic | 75 VDC | 36 VDC | Plastic | 1.1 A | 13500 RPM | CE cURus TUV | 71 dB(A) | 92 mm | 92 mm | Ball | 3.435 in H2O | 855.6 Pa | 216.36 g | 0.477 lb | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial | 52.8 W | 5.11 m³/min | 182.4 CFM | 48 VDC | 70 °C | -25 °C | 4 Wire Leads |
