86A3R Series

Catalog

SENSOR 150PSIG 4.5V

Part	Termination Style	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Output Type	Features	Pressure Type	Port Style	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Maximum Pressure

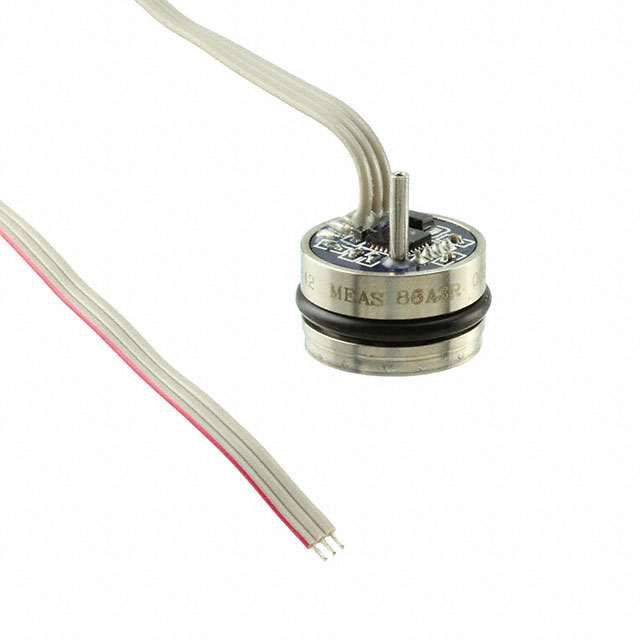

TE Connectivity Measurement Specialties 86A3R-000000-150PG	Cable with Connector	1 %	85 °C	-20 C	0.5 V	4.5 V	Analog Voltage	Amplified Output Temperature Compensated	Vented Gauge	No Port	1034.21 kPa	150 PSI	4.75 V	5.25 V	Module	450 PSI	3102.64 kPa	Board Mount

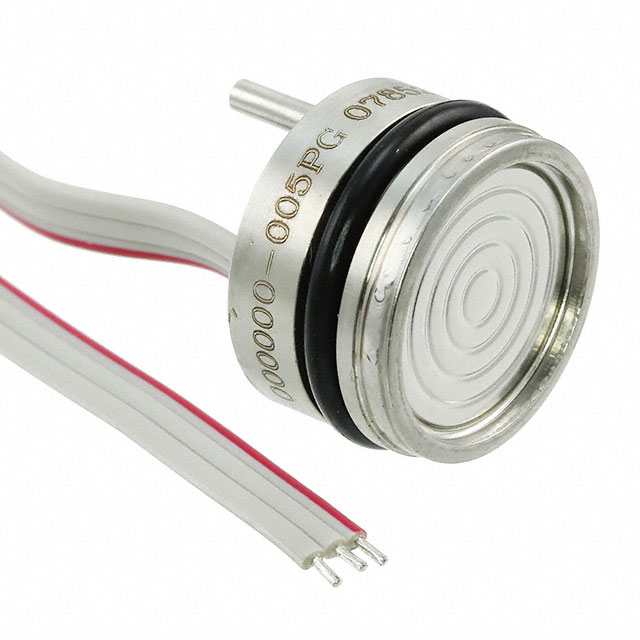

TE Connectivity Measurement Specialties 86A3R-000000-005PG	Cable with Connector	1 %	85 °C	-20 C	0.5 V	4.5 V	Analog Voltage	Amplified Output Temperature Compensated	Vented Gauge	No Port	34.47 kPa	5 PSI	4.75 V	5.25 V	Module	15 PSI		Board Mount	103.42 kPa
