RFABN Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, N, JACK, N, PLUG, RIGHT ANGLE ADAPTER, 50 OHM
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Dielectric Material | Body Material | Adapter Series | Conversion Type | Impedance | Frequency - Max [Max] | Mounting Type | Convert From (Adapter End) | Convert To (Adapter End) | Style | Adapter Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

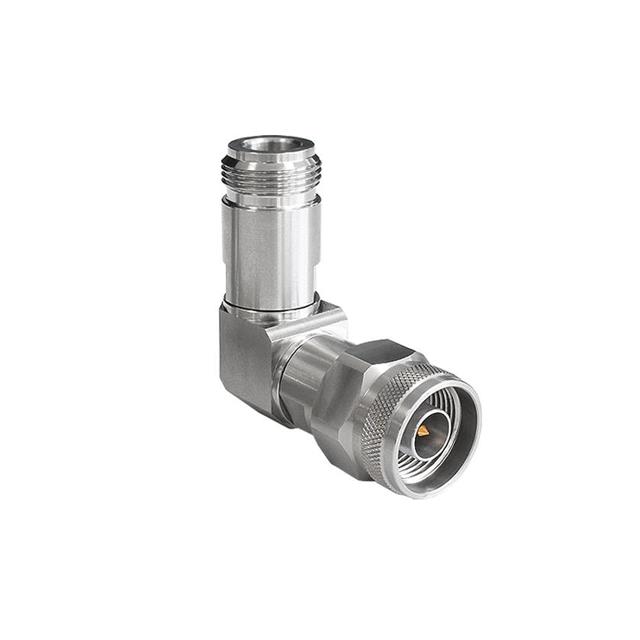

 BULGIN LIMITED | 500 | 85 °C | -40 C | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | N to N | Same Series | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | Female Socket N Jack | N Plug Male Pin | Right Angle | Plug to Jack | |
 BULGIN LIMITED | 500 | 85 °C | -40 C | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | N to N | Same Series | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | Female Socket N Jack | N Jack Female Socket | Right Angle | Jack to Jack | Female to Female |
 BULGIN LIMITED | 500 | 85 °C | -40 C | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Stainless Steel | N to N | Same Series | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | N Plug Male Pin | N Plug Male Pin | Right Angle | Plug to Plug | Male to Male |
