MPX5700 Series

Catalog

PRESSURE SENSOR, DIFFERENTIAL, 0 KPA, 700 KPA, 4.75 V, 5.25 V, SIP

Part	Accuracy	Features	Package / Case	Mounting Type	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Pressure Type	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]
Freescale Semiconductor - NXP MPX5700D	2.5 %	Temperature Compensated	6-SIP Module	Through Hole	No Port	125 °C	-40 °C	Board Mount	Differential	PC Pin	406.11 PSI	2800 kPa	Analog Voltage	700 kPa	101.53 PSI	4.75 V	5.25 V

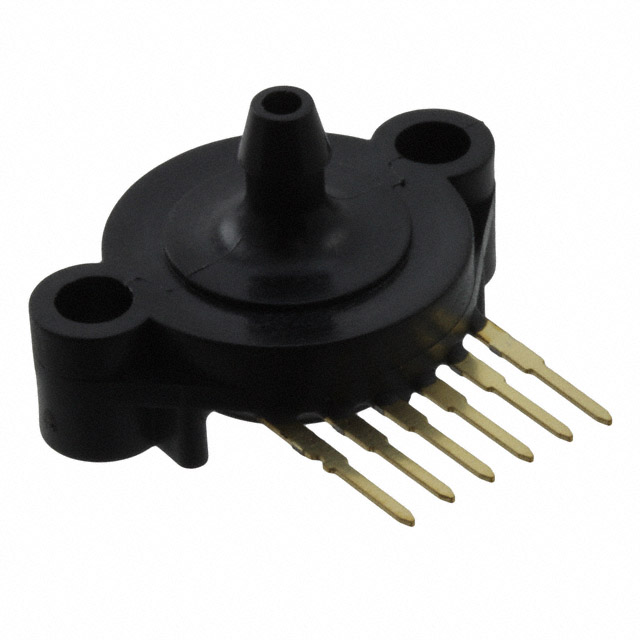

Freescale Semiconductor - NXP MPX5700ASX	2.5 %	Temperature Compensated	6-SIP Module	Through Hole	Barbed	125 °C	-40 °C	Board Mount		PC Pin	406.11 PSI	2800 kPa	Analog Voltage			4.75 V	5.25 V	4.93 mm	0.19 "	7 bar	101.53 PSI	15 kPa	2.18 PSI
Freescale Semiconductor - NXP MPX5700AP	2.5 %	Temperature Compensated	6-SIP Module	Through Hole	Barbed	125 °C	-40 °C	Board Mount		PC Pin	406.11 PSI	2800 kPa	Analog Voltage			4.75 V	5.25 V	4.93 mm	0.19 "	7 bar	101.53 PSI	15 kPa	2.18 PSI
Freescale Semiconductor - NXP MPX5700GP	2.5 %	Temperature Compensated	6-SIP Module	Through Hole	Barbed	125 °C	-40 °C	Board Mount	Vented Gauge	PC Pin	406.11 PSI	2800 kPa	Analog Voltage	700 kPa	101.53 PSI	4.75 V	5.25 V	4.93 mm	0.19 "
Freescale Semiconductor - NXP MPX5700DP	2.5 %	Temperature Compensated	6-SIP Module	Through Hole	Barbed	125 °C	-40 °C	Board Mount	Differential	PC Pin	406.11 PSI	2800 kPa	Analog Voltage	700 kPa	101.53 PSI	4.75 V	5.25 V
