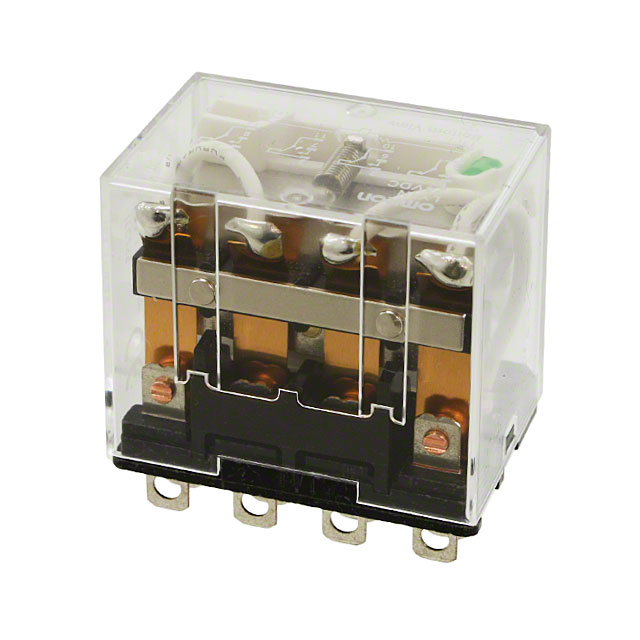

LY4-0-A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 10A 120V
| Part | Coil Current | Switching Voltage | Contact Rating (Current) | Coil Resistance | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Release Time | Relay Type | Contact Form | Must Operate Voltage | Mounting Type | Contact Material | Approval Agency | Coil Voltage | Load - Max Switching | Termination Style | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 16.4 mA | 125 VDC 250 VAC | 10 A | 2.2 kOhms | 36 VAC | -25 °C | 40 °C | Non Latching | 25 ms | General Purpose | 4PDT (4 Form C) | 96 VAC | Through Hole | Silver Alloy | CE CSA TUV UR | 120 VAC | 1250 W 2500 VA | PC Pin | 25 ms |
 Omron Electronics Inc-EMC Div | 9.5 mA | 125 VDC 250 VAC | 10 A | 9 kOhms | 72 VAC/DC | -25 °C | 40 °C | Non Latching | 25 ms | General Purpose | 4PDT (4 Form C) | 192 VAC | Through Hole | Silver Alloy | CE CSA TUV UR | 240 VAC | 1250 W 2500 VA | PC Pin | 25 ms |
Omron Electronics Inc-EMC Div | 11.2 mA | 125 VDC 250 VAC | 10 A | 6.7 kOhms | 66 VAC | -25 °C | 40 °C | Non Latching | 25 ms | General Purpose | 4PDT (4 Form C) | 176 VAC | Through Hole | Silver Alloy | CE CSA TUV UR | 220 VAC/DC | 1250 W 2500 VA | PC Pin | 25 ms |
