3208 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN TERM RECT TONG 14-16 AWG #6

Part	Mounting Type	Features	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Stud/Tab Size	Termination	Terminal Type	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Contact Material	Terminal Style	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Termination	Length - Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Color	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Width - Outer Edges	Width - Outer Edges [custom]	Length - Termination [x]	Length - Termination [x]
TE Connectivity Raychem Cable Protection 320815	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Non-Insulated	0.25 "	6.35 mm	0.165 "	4.19 mm	6 Stud	Crimp	Rectangular Tongue	0.085 in	2.16 mm	0.145 in	3.68 mm	Tin	14.22 mm	0.56 in	0.031 "	0.79 mm	Copper	Single Stud Hole
TE Connectivity Raychem Cable Protection 320823	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Non-Insulated	0.469 in	11.91 mm	0.226 in	5.74 mm	0.25 Stud	Barrel Crimp	Rectangular Tongue	0.129 in	3.28 mm	0.265 in	6.73 mm	Tin	27.15 mm	1.069 in	0.039 in	0.99 mm	Copper	Single Stud Hole	12 AWG	10 AWG

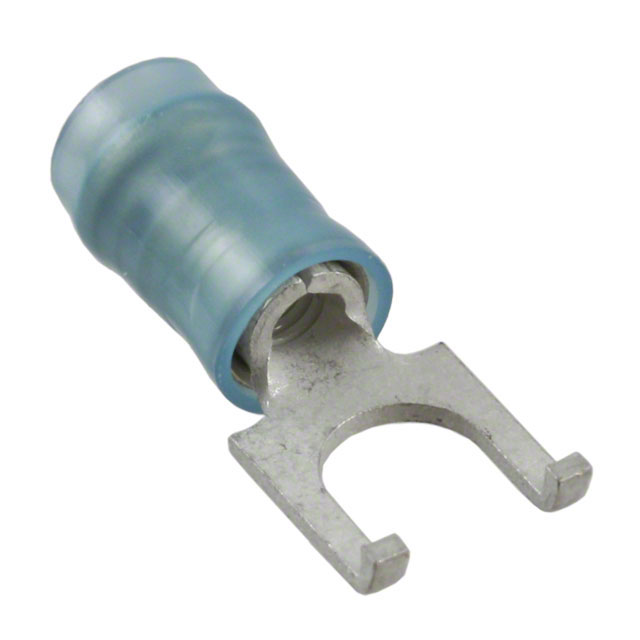

TE Connectivity Raychem Cable Protection 320863	Free Hanging (In-Line)		Insulated					10 Stud	Crimp	Flanged					Tin	19.51 mm	0.768 "			Copper				0.115 in 2.92 mm	0.17 " 4.32 mm	0.404 "	10.26 mm	0.203 in	5.16 mm	Blue	5 mm	0.197 in	Nylon Polyamide (PA)	7.47 mm	0.294 in

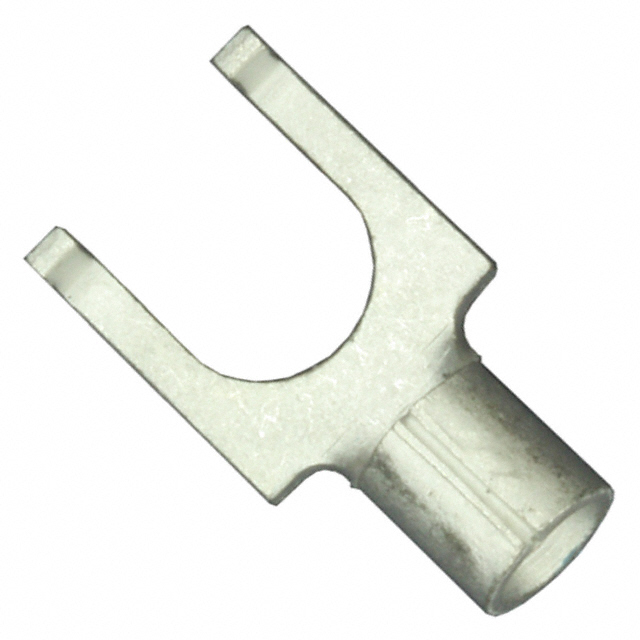

TE Connectivity Raychem Cable Protection 320857	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Non-Insulated					10 Stud	Crimp	Flanged					Tin	13.84 mm	0.545 in			Copper								0.203 in	5.16 mm		5 mm	0.197 in		7.47 mm	0.294 in	0.181 in	4.6 mm
TE Connectivity Raychem Cable Protection 320822	Free Hanging (In-Line)	Serrated Termination	Non-Insulated	0.469 in	11.91 mm	0.221 in	5.61 mm	0.25 Stud	Crimp	Standard	0.134 in	3.4 mm	0.265 in	6.73 mm	Tin	27.15 mm	1.069 in	0.039 in	0.99 mm	Copper	Single Stud Hole	12 AWG	10 AWG
