M2019B2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Actuator Length [x]	Ingress Protection	Current Rating (Amps)	Bushing Thread	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination	Switch Function	Termination Style	Features	Voltage Rating - AC	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit

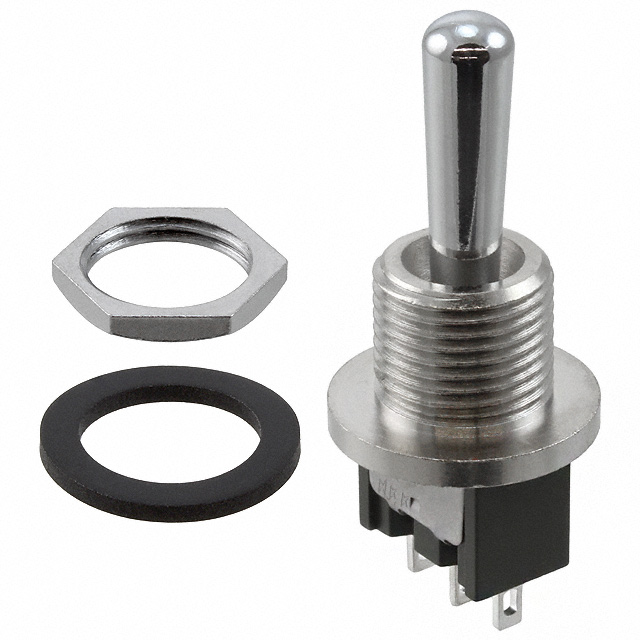

NKK Switches M2019B2B3W01	Brass Chrome Plated	25000 Steps	17.5 mm	IP67 - Dust Tight Waterproof	3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Solder Lug	Epoxy Sealed Terminals	125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02-AT4181	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02/UC-AT4181	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1W01-AT401H	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Solder Lug		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02/UC-AT401H	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02-AT401H	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT

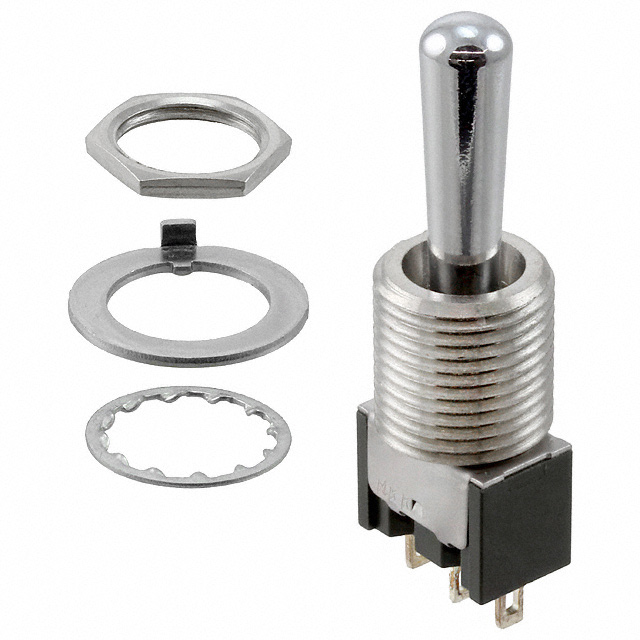

NKK Switches M2019B2B1W01	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Solder Lug	Epoxy Sealed Terminals	125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02/UC-AT401A	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02-AT401S	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2019B2B1A02/UC-AT401S	Brass Chrome Plated	25000 Steps	17.5 mm		3 A 6 A	M12 x 1	30 V	12.5 mm	Non-Illuminated	On-Off-Mom	Quick Connect - 0.062" (1.5mm)		125 V	Panel Mount	Standard Round	85 °C	-30 ░C	SPDT
