12002 Series

Catalog

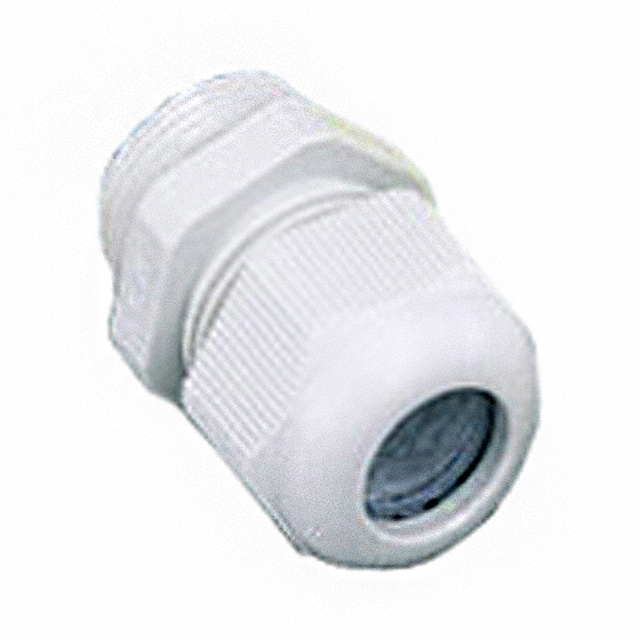

CABLE GLAND 19-28MM M40 POLYAMID

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Type	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)	Thread Size	Thread Length	Thread Length	Material	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]
Bopla Enclosures 12002600	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland	0.748 in	19 mm	M40x1.5	0.394 in	10 mm	Polyamide (PA) Nylon	28 mm	1.102 in

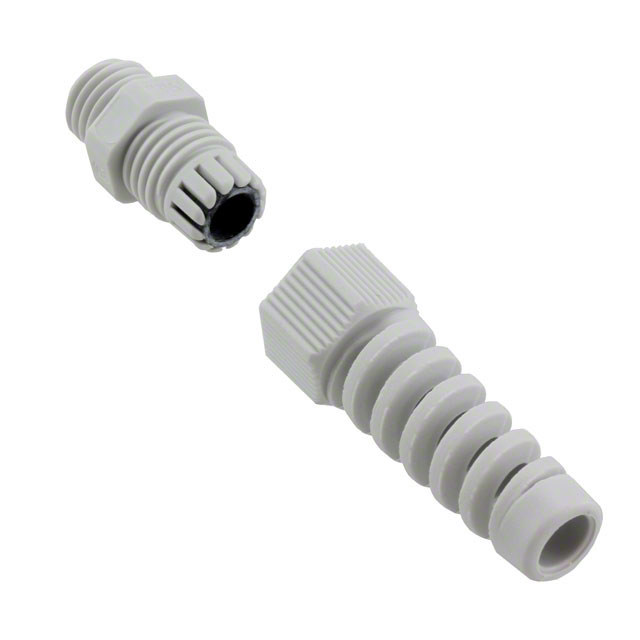

Bopla Enclosures 12002103	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M12x1.5	0.315 "	8 mm	Polyamide (PA) Nylon	6.5 mm	0.256 in	3 mm	0.118 in	Strain Relief

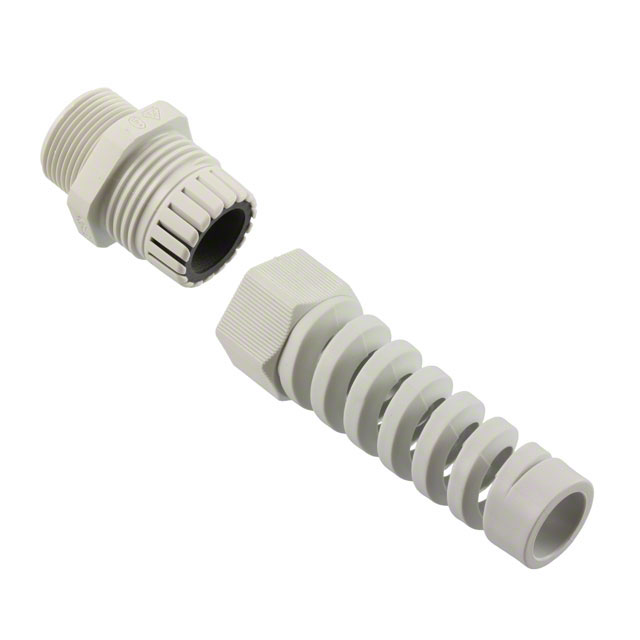

Bopla Enclosures 12002401	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M25x1.5	0.315 "	8 mm	Polyamide (PA) Nylon					Strain Relief	13 mm	0.512 in	18.01 mm	0.709 in

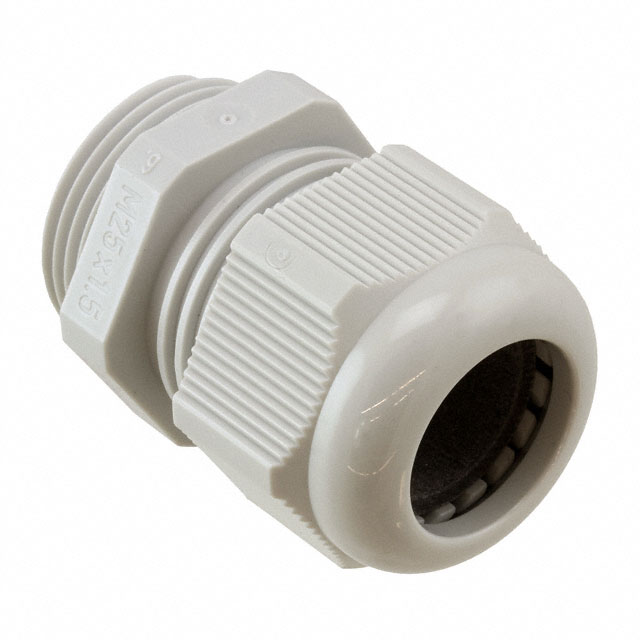

Bopla Enclosures 12002400	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland		11 mm	M25x1.5	0.315 "	8 mm	Polyamide (PA) Nylon	16.99 mm						0.433 in		0.669 in

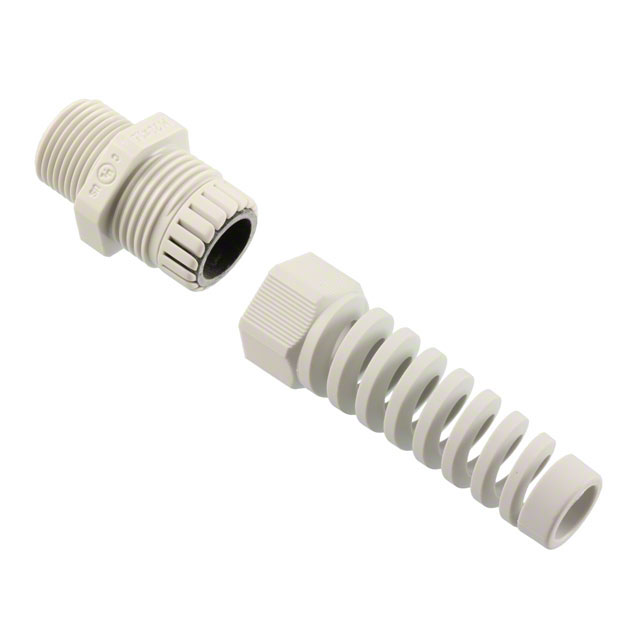

Bopla Enclosures 12002306	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M20x1.5	0.315 "	8 mm	Polyamide (PA) Nylon	14 mm				Strain Relief	10 mm	0.394 "		0.551 in

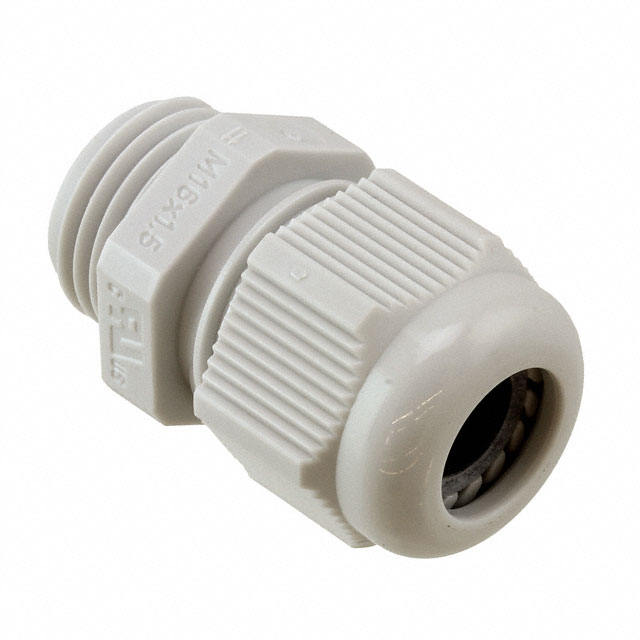

Bopla Enclosures 12002200	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M16x1.5	0.315 "	8 mm	Polyamide (PA) Nylon				5 mm				10 mm	0.394 in	0.197 in

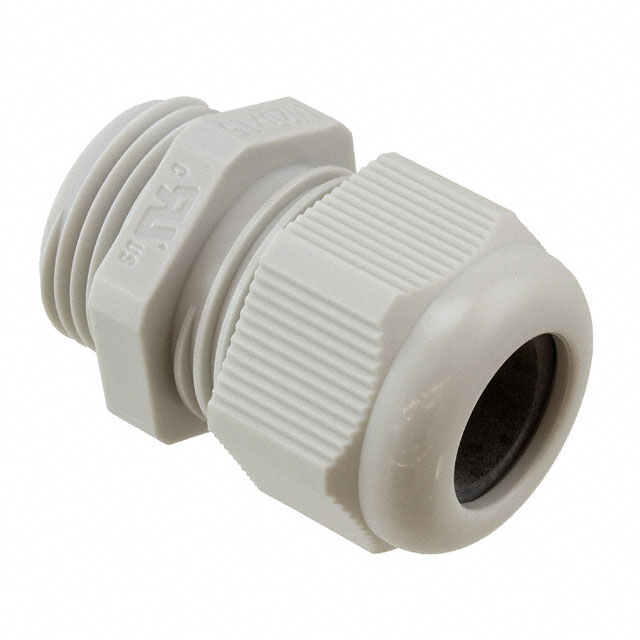

Bopla Enclosures 12002300	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M20x1.5	0.315 "	8 mm	Polyamide (PA) Nylon								13 mm	0.512 in		0.315 in	8 mm
Bopla Enclosures 12002500	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M32x1.5	0.394 in	10 mm	Polyamide (PA) Nylon	21 mm	0.827 in				15 mm	0.591 in

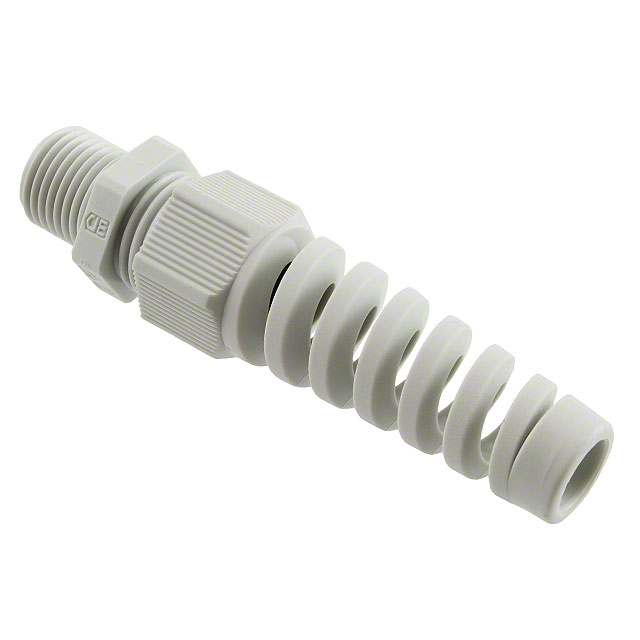

Bopla Enclosures 12002210	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M16x1.5	0.315 "	8 mm	Polyamide (PA) Nylon				5 mm	Strain Relief			10 mm	0.394 in	0.197 in

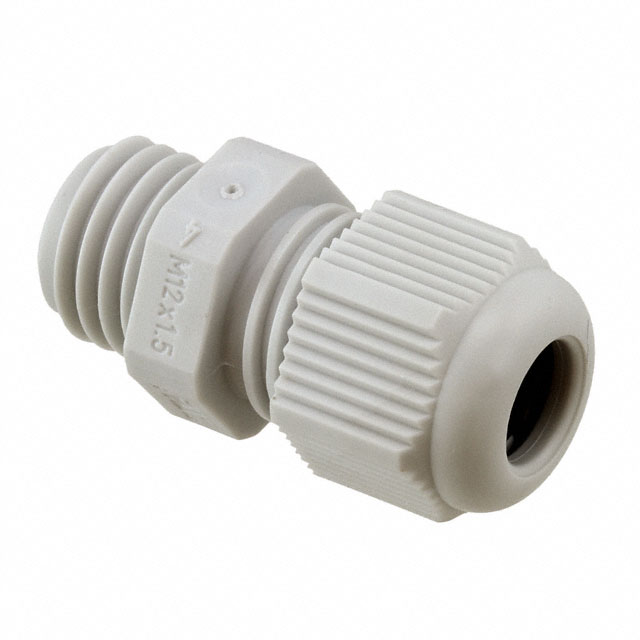

Bopla Enclosures 12002100	IP68 - Dust Tight Waterproof	-20 ░C	100 °C	Gray	Cable Gland			M12x1.5	0.315 "	8 mm	Polyamide (PA) Nylon	6 mm	0.236 in	3 mm	0.118 in
