TLP360 Series

Catalog

PHOTOCOUPLER

Part	Turn On Time	Supplier Device Package	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - LED Trigger (Ift) (Max) [Max]	Current - Hold (Ih)	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Static dV/dt (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Mounting Type	Output Type	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Number of Channels [custom]

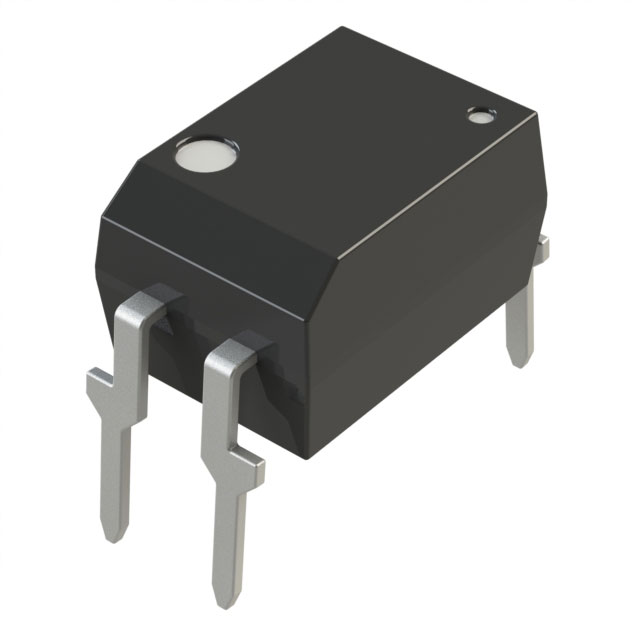

Toshiba Semiconductor and Storage TLP360J(D4-CANO)	30 µs	4-DIP	CQC cUL UL VDE	-40 C	100 °C	10 mA	1 mA	1.15 V	0.3 in	4-DIP	7.62 mm	500 V/µs	50 mA	Through Hole	Triac	100 mA	600 V	1
Toshiba Semiconductor and Storage TLP360J(CANO)	30 µs	4-DIP	CQC cUL UL VDE	-40 C	100 °C	10 mA	1 mA	1.15 V	0.3 in	4-DIP	7.62 mm	500 V/µs	50 mA	Through Hole	Triac	100 mA	600 V	1
Toshiba Semiconductor and Storage TLP360JF(D4-MUR)	100 µs	4-DIP	CQC cUL UL VDE	-40 C	100 °C	10 mA	1 mA	1.15 V		4-DIP (0.400" 10.16mm)		500 V/µs	25 mA	Through Hole	Triac	100 mA	600 V	1
