1274584 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

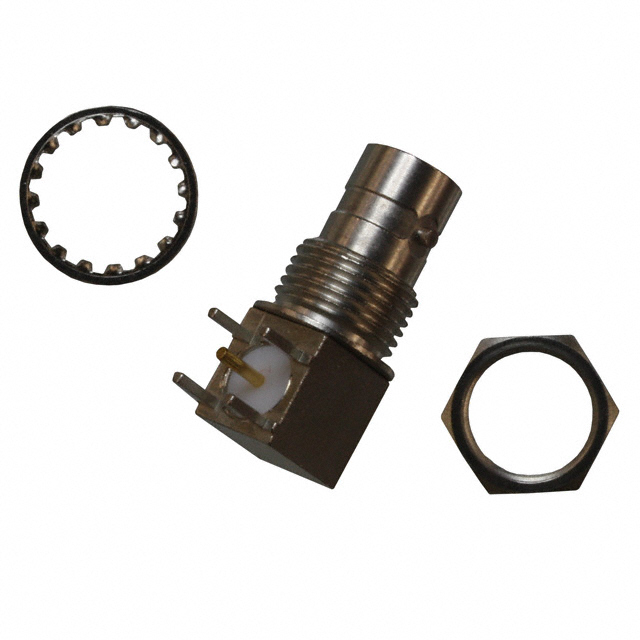

CONN MINI BNC JACK R/A 75OHM PCB
| Part | Dielectric Material | Body Finish | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Voltage Rating | Body Material | Connector Style | Housing Color | Number of Ports | Mounting Feature | Connector Type | Fastening Type | Mounting Type | Impedance | Shield Termination | Center Contact Material | Contact Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Nickel | 1 Connector 1 Lockwasher 1 Nut | 85 °C | -40 C | Gold | 500 | 300 VDC | Brass | BNC Mini | Silver | 1 | Bulkhead - Front Side Nut | Female Socket Jack | Bayonet Lock | Panel Mount Right Angle Through Hole | 75 Ohms | Solder | Phosphor Bronze | Solder | 2 GHz |
