OSTHG04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

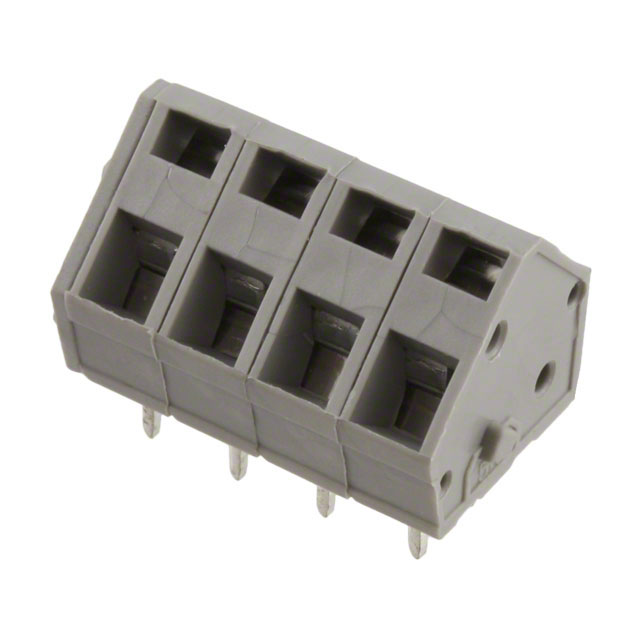

TERM BLOCK 4POS 5.08MM PCB
| Part | Housing Material | Contact Material - Plating | Clamp Material - Plating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch | Pitch | Features | Color | Voltage | Wire Termination | Number of Levels | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | Brass | Stainless Steel | -30 ░C | 105 ░C | Through Hole | 5.08 mm | 0.2 in | Interlocking (Side) | Gray | 300 VDC | Leg Spring Push-In Spring | 1 | 4 | 12 AWG | 28 AWG | Angled | 15 A |
 On Shore Technology Inc. | Thermoplastic | Brass | Stainless Steel | -30 ░C | 105 ░C | Through Hole | 5 mm | 0.197 in | Interlocking (Side) | Gray | 300 VDC | Leg Spring Push-In Spring | 1 | 4 | 12 AWG | 28 AWG | Angled | 15 A |
