XLG-150 Series

Catalog

150W LED POWER SUPPLY O/P +120~2

Part	Mounting Type	Voltage - Input (Max) [Max]	Ratings	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Features	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Approval Agency	Voltage - Isolation	Type

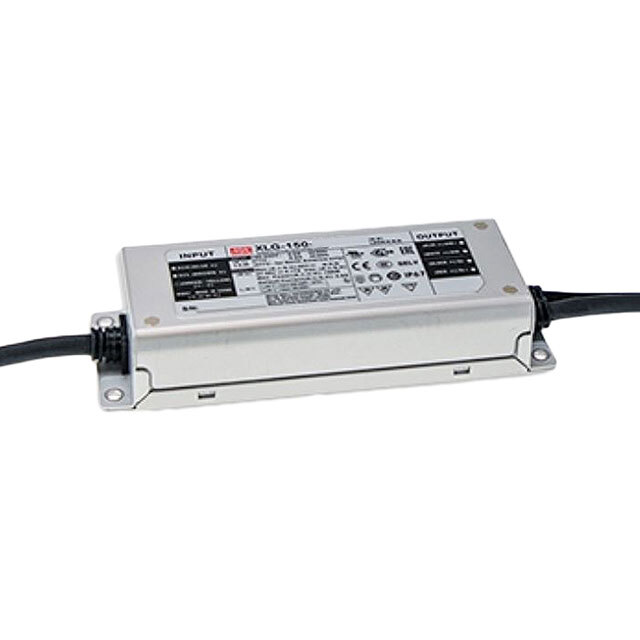

MEAN WELL USA Inc. XLG-150-L-A	Chassis Mount	305 VAC	IP67	93 %	150 W	90 °C	-40 C	100 VAC	1	OCP OTP OVP SCP	214 V	120 V	AC DC Converter	700 mA	35.5 mm	2.48 in	63 mm	1.4 "	6.14 "	156 mm	Wire Leads	CB CCC CE cURus EAC ENEC RCM	4.2 kV	Constant Current
