MB2461E Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Mechanical Life	Electrical Life	Features	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Actuator Type	Actuator Marking	Switch Function	Type	Termination Style	Color - Actuator/Cap	Voltage Rating - DC

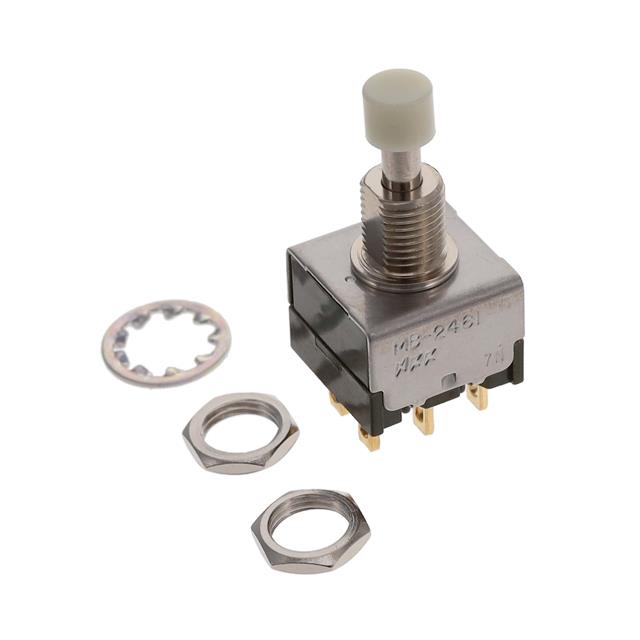

NKK Switches MB2461E1A01-FB	200000 Cycles	25000 Steps	Epoxy Sealed Terminals	125 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	3 A	DPDT	Button Round	No Marking	On-Mom	Standard	Solder Lug	White

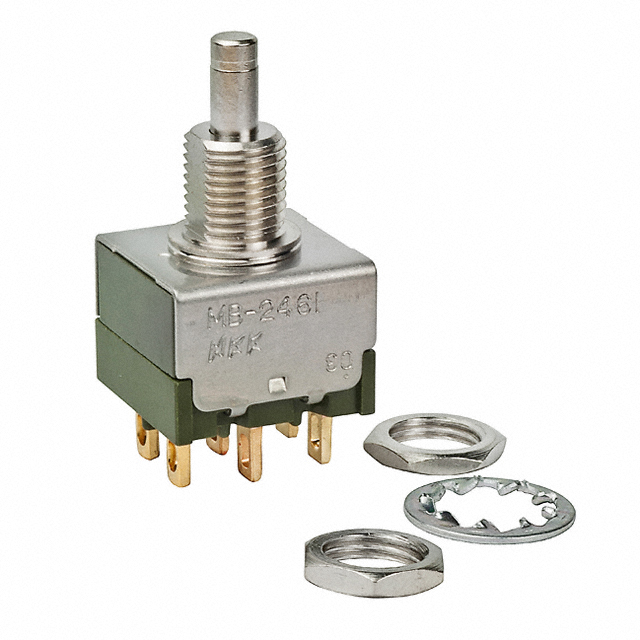

NKK Switches MB2461E1A01	200000 Cycles	25000 Steps	Epoxy Sealed Terminals	125 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	3 A	DPDT	Plunger for Cap	No Marking	On-Mom	Standard	Solder Lug
NKK Switches MB2461E1G03-FA	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Button Round	No Marking	On-Mom	Standard	PC Pin	Black	28 V

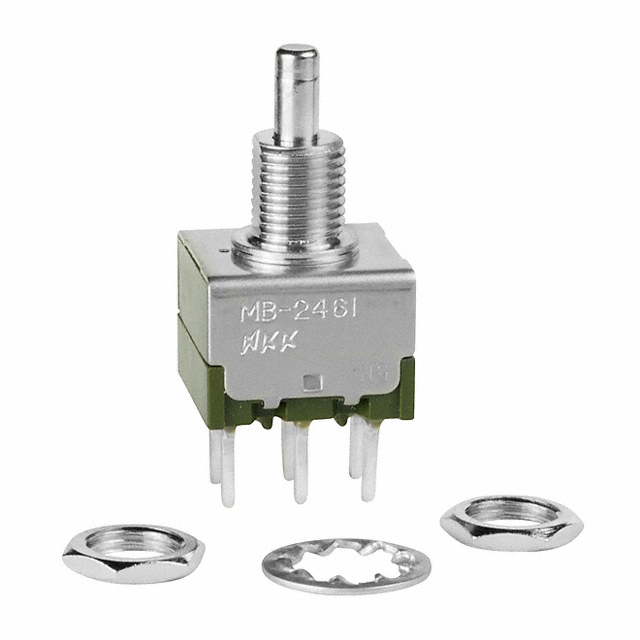

NKK Switches MB2461E1W03-FA	200000 Cycles	25000 Steps	Epoxy Sealed Terminals	125 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	3 A	DPDT	Button Round	No Marking	On-Mom	Standard	PC Pin	Black
NKK Switches MB2461E1G03-HA	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Button Round	No Marking	On-Mom	Standard	PC Pin	Black	28 V
NKK Switches MB2461E1G03-HC	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Button Round	No Marking	On-Mom	Standard	PC Pin	Red	28 V

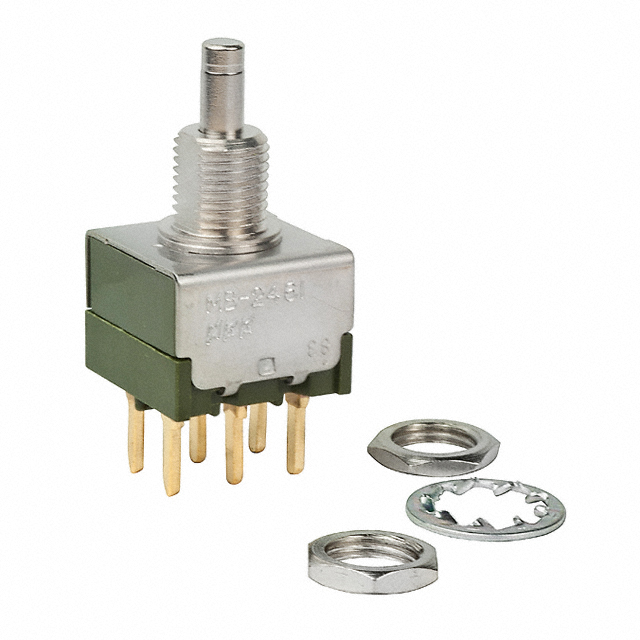

NKK Switches MB2461E1G03	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Plunger for Cap	No Marking	On-Mom	Standard	PC Pin		28 V
NKK Switches MB2461E1G01-FC	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Button Round	No Marking	On-Mom	Standard	Solder Lug	Red	28 V
NKK Switches MB2461E1A01-HC	200000 Cycles	25000 Steps	Epoxy Sealed Terminals	125 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	3 A	DPDT	Button Round	No Marking	On-Mom	Standard	Solder Lug	Red
NKK Switches MB2461E1G01	200000 Cycles	100000 Cycles	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	Panel Mount Rear	6.5 mm	0.4 VA	DPDT	Plunger for Cap	No Marking	On-Mom	Standard	Solder Lug		28 V
