746-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Material	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Gender	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Color
EDAC Inc. 746-090-545-606	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-553-601	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-527-606	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black

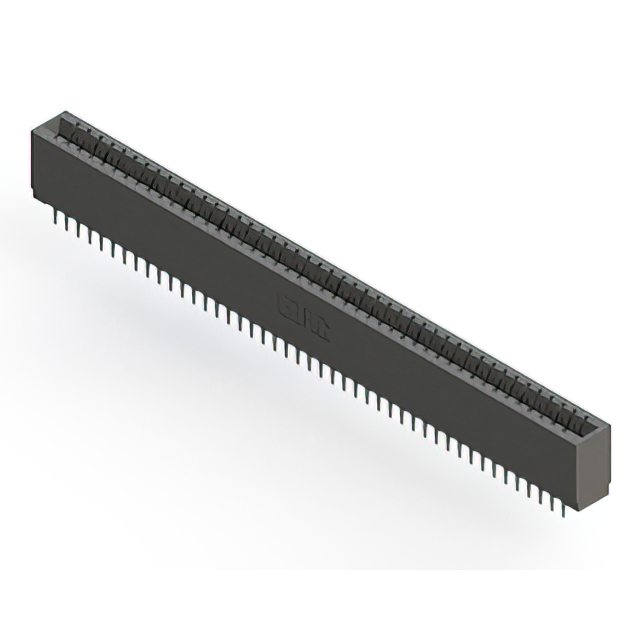

EDAC Inc. 746-090-520-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-545-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-541-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-541-606	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-545-601	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-553-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
EDAC Inc. 746-090-541-601	Polyester Thermoplastic	2	Non Specified - Dual Edge	Copper Alloy	Cantilever	90	-40 C	105 ░C	Press-Fit Wire Wrap	Female	2	Through Hole	30 Áin	0.76 Ám	45	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Black
