K50PTFAM Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

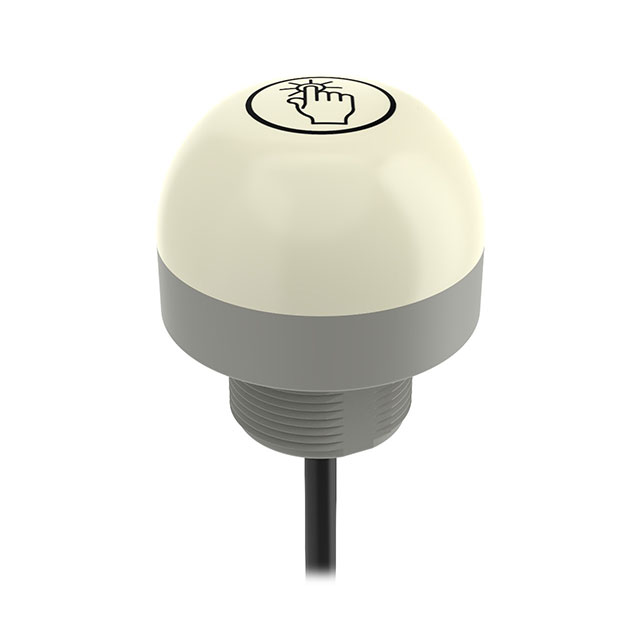

K50 PRO TOUCH SERIES: 3-COLOR RGB TOUCH SENSOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Response Time | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Termination Style | Mounting Type | Ingress Protection | Switch Function | Approval Agency | Circuit | Actuator Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | -40 C | 50 °C | 300 ms | 30 mm | Green LED Red Yellow | Cable Leads | Panel Mount Front | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | Button Domed Round | 12 VDC | 30 VDC |
BANNER ENGINEERING | -40 C | 50 °C | 300 ms | 30 mm | Blue Green LED Red | Cable Leads | Panel Mount Front | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | Button Domed Round | 12 VDC | 30 VDC |
BANNER ENGINEERING | -40 C | 50 °C | 300 ms | 30 mm | Blue Green LED Red | Cable with Connector (M12) | Panel Mount Front | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | Button Domed Round | 12 VDC | 30 VDC |
BANNER ENGINEERING | -40 C | 50 °C | 300 ms | 30 mm | Green LED Red Yellow | Cable with Connector (M12) | Panel Mount Front | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | Button Domed Round | 12 VDC | 30 VDC |
