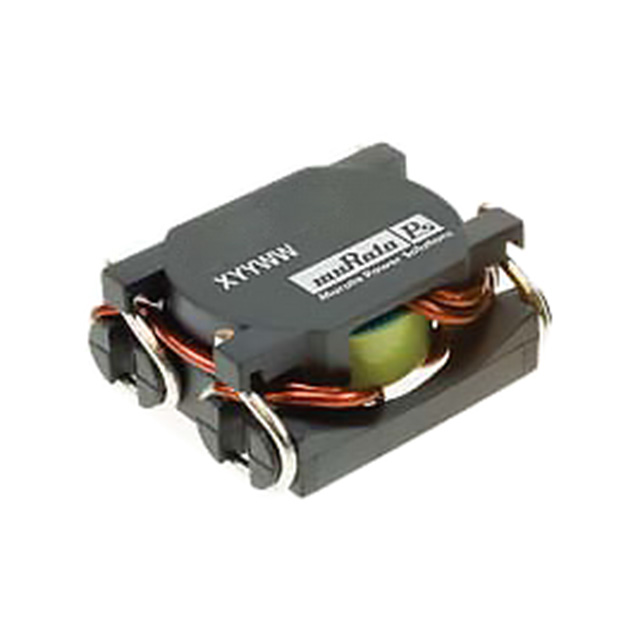

43 Series

Catalog

FIXED IND 2.1UH 21A 2.22MOHM SMD

Part	Mounting Type	Inductance	Tolerance	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Murata Electronics 43212C-R	Surface Mount	2.1 µH	15 %	106 MHz	20.3 mm	0.909 in	23.1 mm	0.799 "	Toroidal	Nonstandard	2.22 mOhm	100 kHz	Unshielded	21 A	125 °C	-40 C
Murata Electronics 43212C	Surface Mount	2.1 µH	15 %	106 MHz	20.3 mm	0.909 in	23.1 mm	0.799 "	Toroidal	Nonstandard	2.22 mOhm	100 kHz	Unshielded	21 A	125 °C	-40 C
Murata Electronics 43402C-R	Surface Mount	4 µH	15 %	69 MHz	25.4 mm	1.11 in	28.2 mm	1 "	Toroidal	Nonstandard	3.1 mOhm	100 kHz	Unshielded	22.4 A	125 °C	-40 C
