2823096 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB

Part	Fastening Type	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Contact Type	Insulation Color	Number of Positions	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Contact Length - Mating	Contact Length - Mating

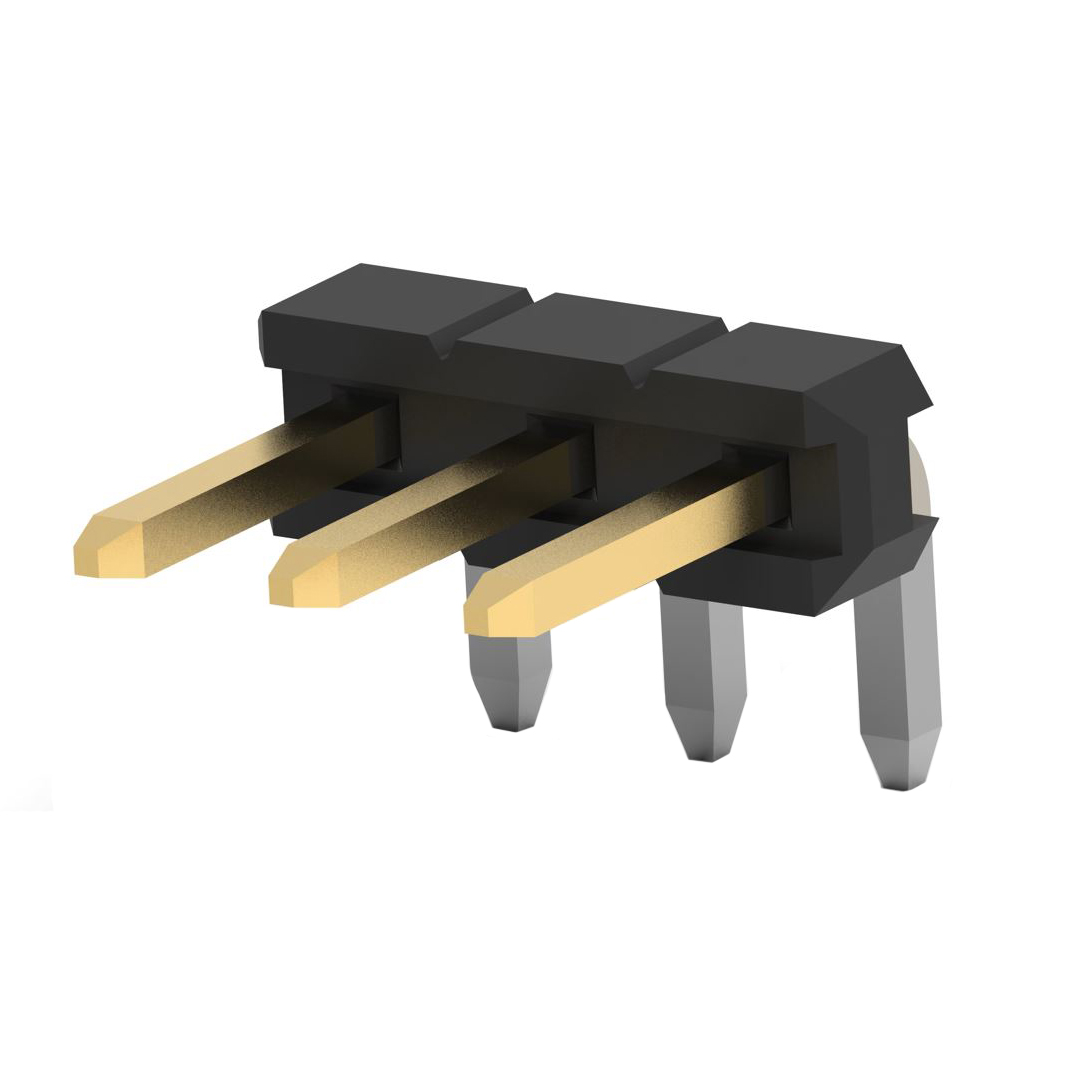

TE Connectivity Raychem Cable Protection 2823096-4	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black	4	Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2823096-6	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black	6	Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 1-2823096-0	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black	10	Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in

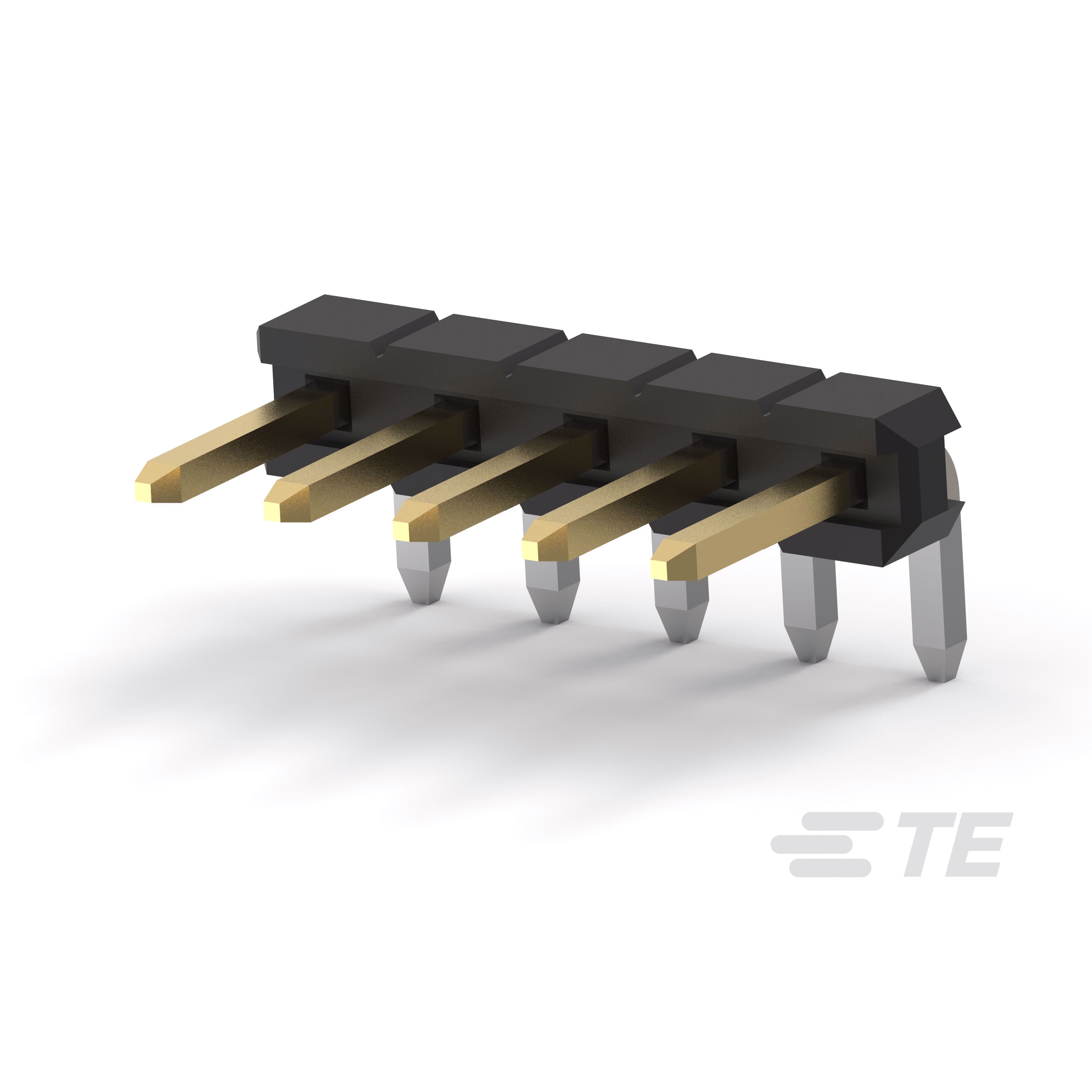

TE Connectivity Raychem Cable Protection 2823096-5	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black		Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2-2823096-5	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	125 °C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black		Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2823096-2	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black	2	Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2823096-3	Push-Pull	Square	0.079 in	2 mm	2 A	Phosphor Bronze	1	-40 °C	105 ░C	Gold	All	UL94 V-0	125 VAC	Male Pin	Black		Through Hole Right Angle	Solder	3.94 µin	0.1 µm	0.11 in	2.8 mm	Thermoplastic	0.3 µm	12 µin	Unshrouded	Tin	0.079 in	2 mm	Breakaway Header	4 mm	0.157 in
