32K107 Series
Manufacturer: Rosenberger
Beta
⌘K

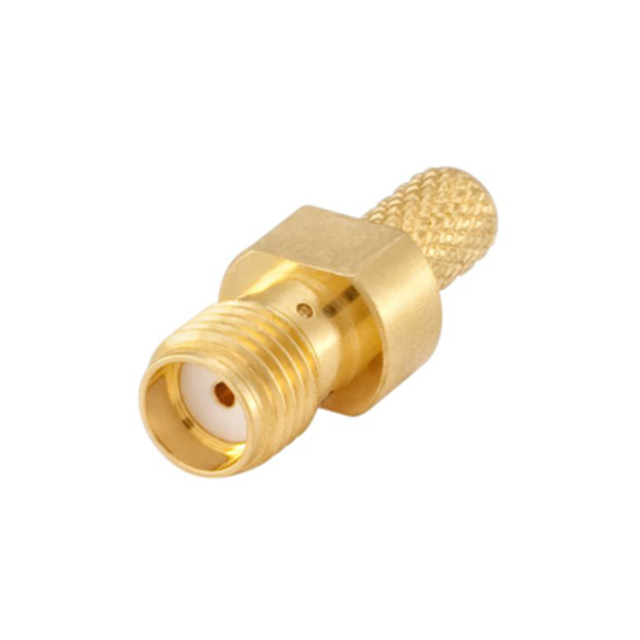

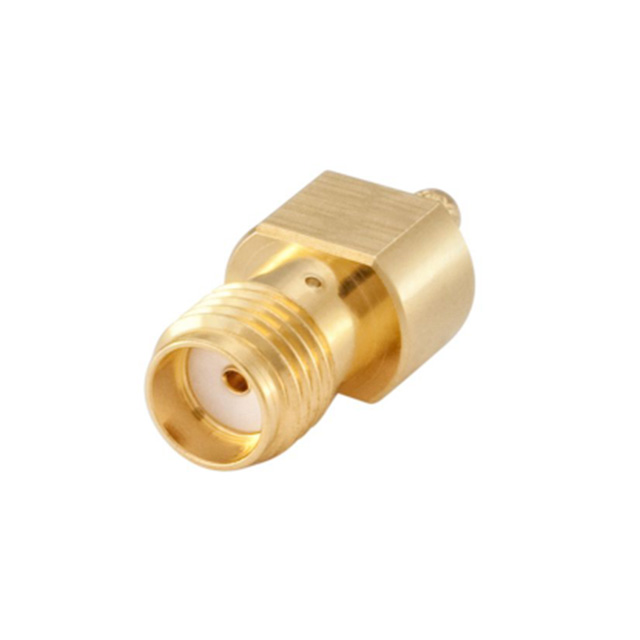

CONN SMA JACK STR 50OHM SOLDER
| Part | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Mating Cycles | Impedance | Fastening Type | Housing Color | Connector Type | Mounting Type | Cable Group | Contact Termination | Frequency - Max [Max] | Shield Termination | Connector Style | Number of Ports | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Beryllium Copper | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 480 V | 500 | 50 Ohms | Threaded | Gold | Female Socket Jack | Free Hanging (In-Line) | 141 RG-58C | Solder | 12.4 GHz | Crimp | SMA | 1 | Beryllium Copper |
 Rosenberger | Gold | Beryllium Copper | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 480 V | 500 | 50 Ohms | Threaded | Gold | Female Socket Jack | Free Hanging (In-Line) | RG-142B | Solder | 12.4 GHz | Crimp | SMA | 1 | Beryllium Copper |
 Rosenberger | Gold | Beryllium Copper | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 480 V | 500 | 50 Ohms | Threaded | Gold | Female Socket Jack | Free Hanging (In-Line) | 188A 316 RG-174A | Solder | 12.4 GHz | Crimp | SMA | 1 | Beryllium Copper |
