50.65 Series

Catalog

CABLE GLAND 27-35MM M50 POLYAMID

Part	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Type	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Thread Size	Ingress Protection	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material

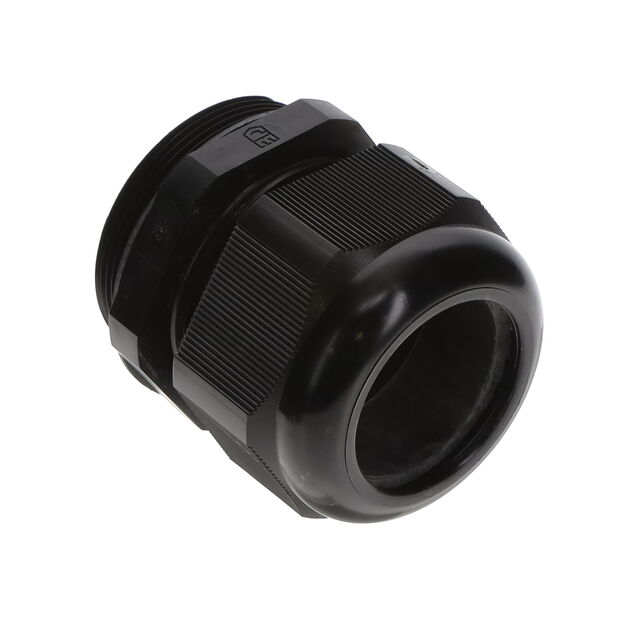

Jacob GmbH 50.650 PA/SW	Black	35 mm	1.378 in	12 mm	0.472 in	Cable Gland	-40 C	100 °C	Sealing Ring	M50x1.5	IP68 - Dust Tight Waterproof	27 mm	1.063 in

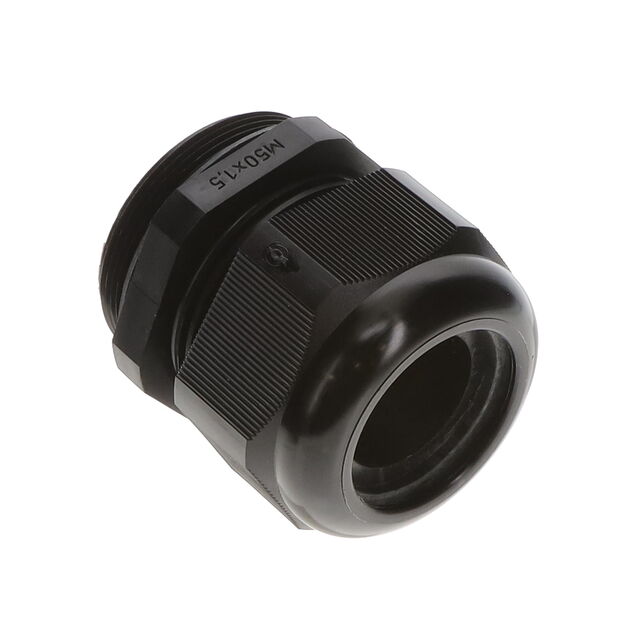

Jacob GmbH 50.650 PA/RSW	Black	35 mm	1.378 in	12 mm	0.472 in	Cable Gland	-40 C	100 °C	Sealing Ring	M50x1.5	IP68 - Dust Tight Waterproof			21 mm	0.827 in

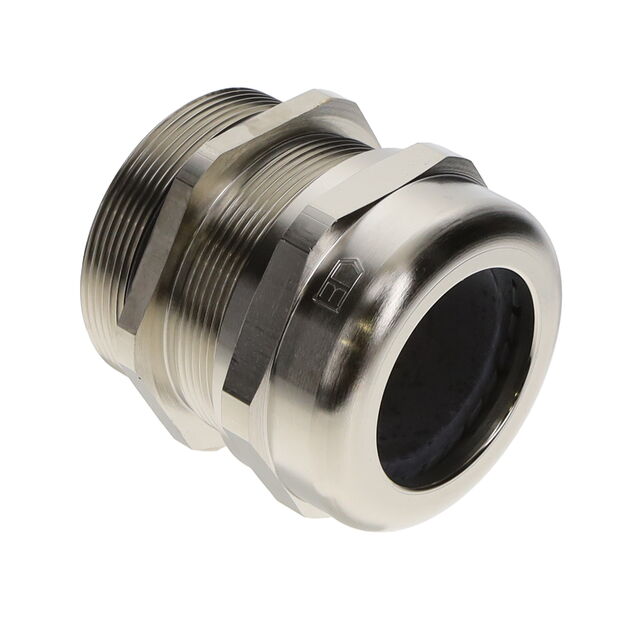

Jacob GmbH 50.650M/EMV/L	Silver	35 mm	1.378 in	14 mm	0.551 in	Cable Gland	-40 C	100 °C	O-Ring Seal	M50x1.5	IP68 - Dust Tight Waterproof			24 mm	0.945 in	Brass Nickel Plated

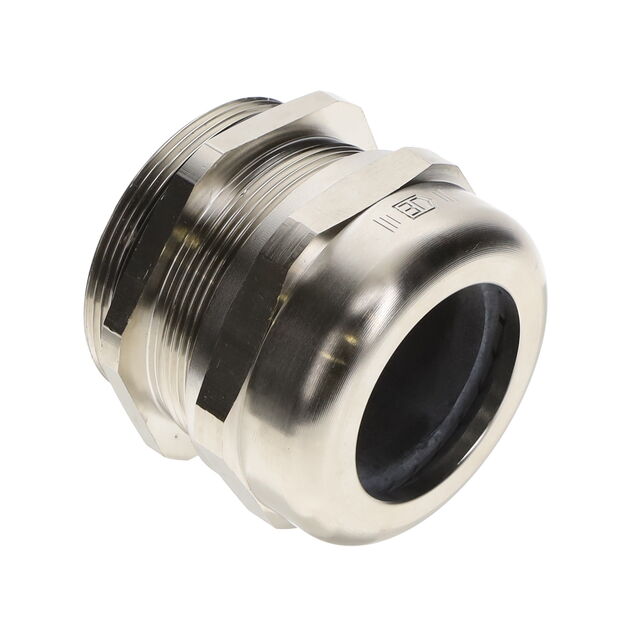

Jacob GmbH 50.650 M/EMVD	Silver	35 mm	1.378 in	9 mm	0.354 in	Cable Gland	-40 C	100 °C	O-Ring Seal	M50x1.5	IP68 - Dust Tight Waterproof			24 mm	0.945 in	Brass Nickel Plated

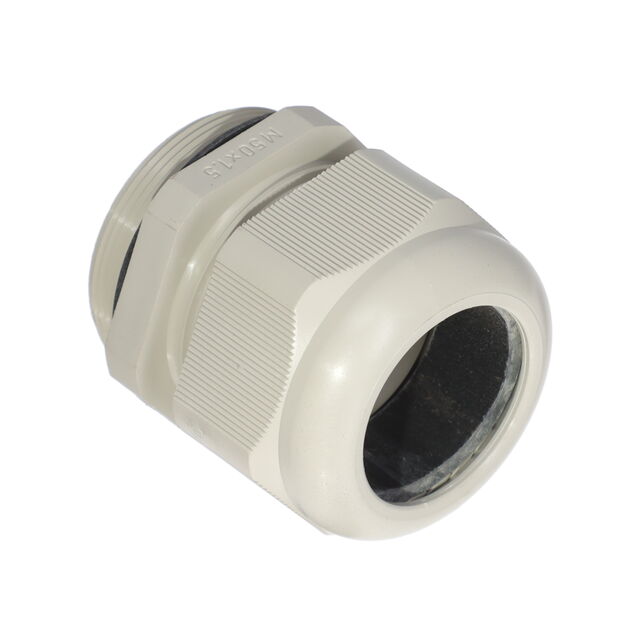

Jacob GmbH 50.650 PA/FL	Gray	35 mm	1.378 in	12 mm	0.472 in	Cable Gland	-40 C	100 °C	Sealing Ring	M50x1.5	IP68 - Dust Tight Waterproof	27 mm	1.063 in

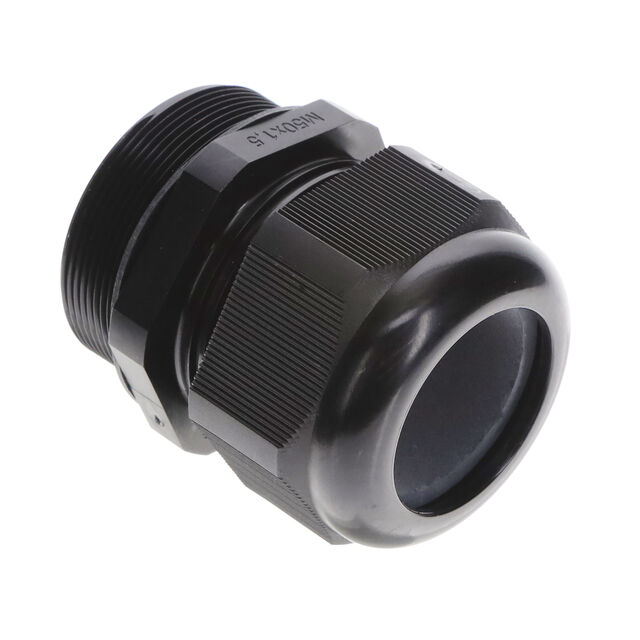

Jacob GmbH 50.650 PA/SWL	Black	35 mm	1.378 in	18.01 mm	0.709 in	Cable Gland	-40 C	100 °C	Sealing Ring	M50x1.5	IP68 - Dust Tight Waterproof	27 mm	1.063 in
Jacob GmbH 50.650 PA7035	Gray	35 mm	1.378 in	12 mm	0.472 in	Cable Gland	-40 C	100 °C	Sealing Ring	M50x1.5	IP68 - Dust Tight Waterproof	27 mm	1.063 in

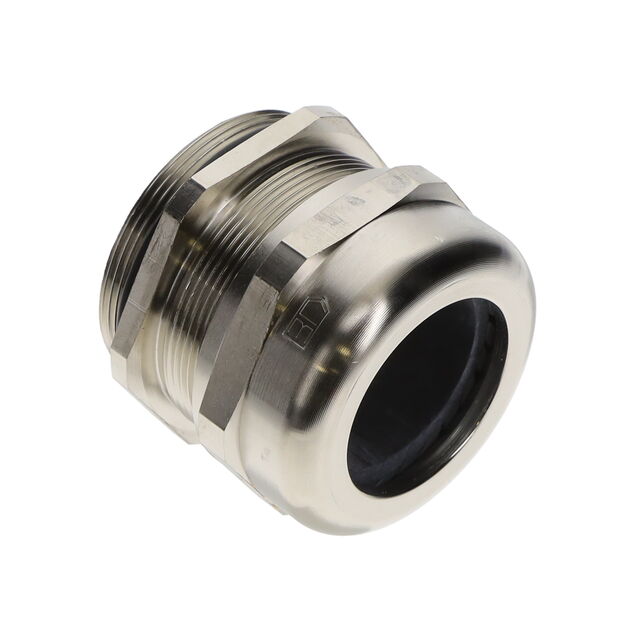

Jacob GmbH 50.650 M/EMV	Silver	35 mm	1.378 in	9 mm	0.354 in	Cable Gland	-40 C	100 °C	O-Ring Seal	M50x1.5	IP68 - Dust Tight Waterproof			24 mm	0.945 in	Brass Nickel Plated

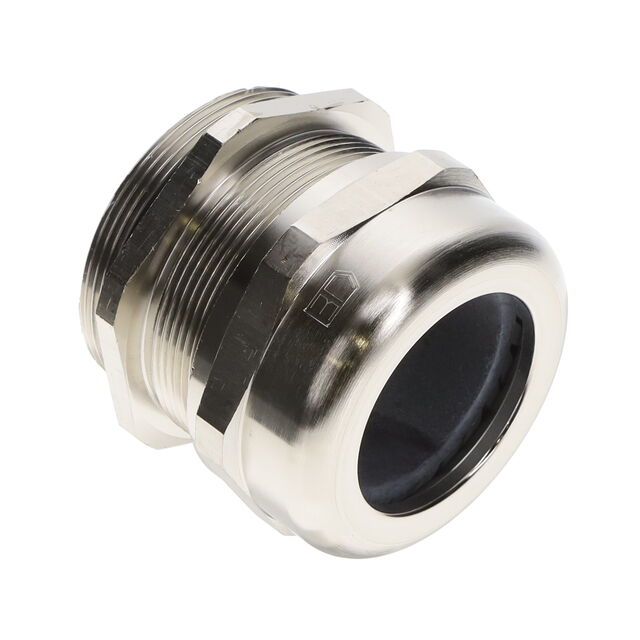

Jacob GmbH 50.650 M	Silver	35 mm	1.378 in	9 mm	0.354 in	Cable Gland	-40 C	100 °C	O-Ring Seal	M50x1.5	IP68 - Dust Tight Waterproof			24 mm	0.945 in	Brass Nickel Plated

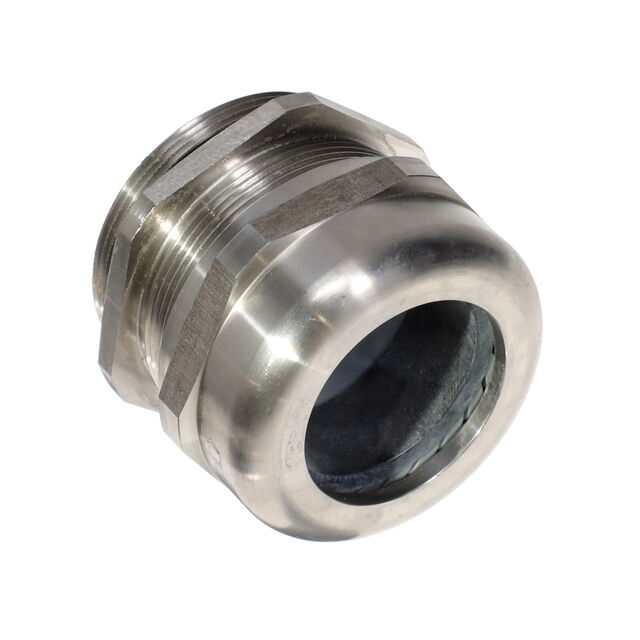

Jacob GmbH 50.650 ES	Silver	35 mm	1.378 in	9 mm	0.354 in	Cable Gland	-40 C	100 °C	O-Ring Seal	M50x1.5	IP68 - Dust Tight Waterproof			24 mm	0.945 in	Stainless Steel
