A3/0 Series
Manufacturer: Panduit Corp
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

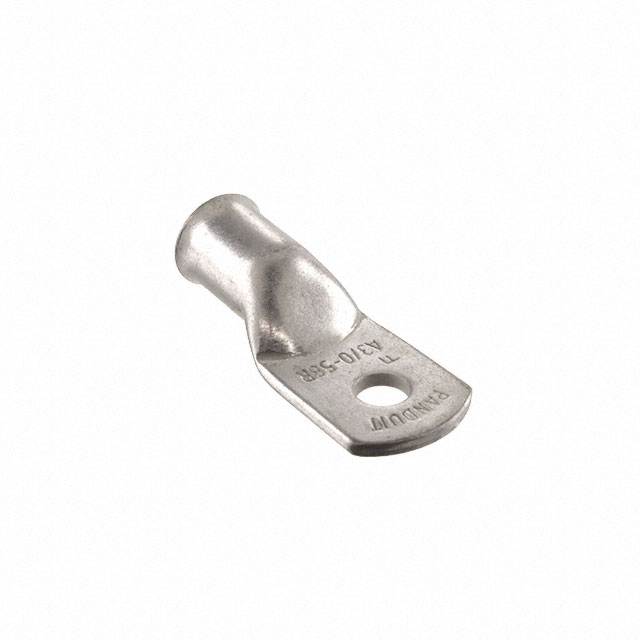

TERMINALS BATTERY CABLE LUG, 3/0 AWG, 5/16" STUD
| Part | Mounting Type | Width - Outer Edges | Contact Finish | Thickness | Length - Overall | Terminal Type | Termination | Insulation | Wire Gauge | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Free Hanging (In-Line) | 0.91 in | Electro-Tin | 0.1 in | 2.27 in | Circular Tubular (Battery Lugs) | Crimp | Non-Insulated | 3/0 AWG | 0.3125 in | Stud | 16 Stud 5 Stud | Copper |
 Panduit Corp | Free Hanging (In-Line) | 0.91 in | Electro-Tin | 0.1 in | 2.27 in | Circular Tubular (Battery Lugs) | Crimp | Non-Insulated | 3/0 AWG | 0.375 in | 3 Stud 8 Stud | Copper | |
 Panduit Corp | Free Hanging (In-Line) | 0.91 in | Electro-Tin | 0.1 in | 2.32 in | Circular Tubular (Battery Lugs) | Crimp | Non-Insulated | 3/0 AWG | 0.5 Stud | Copper |
