DRV8816 Series

40-V, Dual Half H-Bridge Motor Driver

Catalog

40-V, Dual Half H-Bridge Motor Driver

Part	Function	Motor Type - AC, DC	Applications	Interface	Mounting Type	Current - Output	Technology	Output Configuration	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Supplied Contents	Utilized IC / Part	Type
Texas Instruments DRV8816PWPR	Driver - Fully Integrated Control and Power Stage	Brushed DC	General Purpose	Parallel	Surface Mount	2.8 A	DMOS	Half Bridge (2)	16-PowerTSSOP	0.173 in 4.4 mm Width	38 V	8 V	-40 °C	190 °C	16-HTSSOP	8 V	38 V
Texas Instruments DRV8816PWP	Driver - Fully Integrated Control and Power Stage	Brushed DC	General Purpose	Parallel	Surface Mount	2.8 A	DMOS	Half Bridge (2)	16-PowerTSSOP	0.173 in 4.4 mm Width	38 V	8 V	-40 °C	190 °C	16-HTSSOP	8 V	38 V

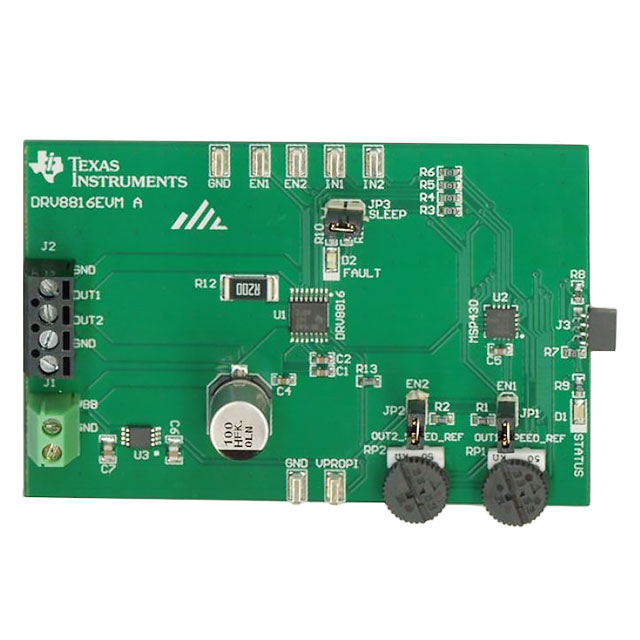

Texas Instruments DRV8816EVM	Motor Controller/Driver																	Board(s)	DRV8816	Power Management

Catalog

40-V, Dual Half H-Bridge Motor Driver

Key Features

• H-Bridge Motor Driver IndividualDrives a DC Motor or Other LoadsLow RDS(on)MOSFETs (0.4-Ω TYP)Low-Power Sleep Mode100% PWM Supported8- to 38-V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageConfigurable Overcurrent LimitProtection FeaturesVBB Undervoltage Lockout (UVLO)Charge Pump Undervoltage (CPUV)Overcurrent Protection (OCP)Short-to-Supply Protection (STS)Short-to-Ground Protection (STG)Overtemperature Warning (OTW)Overtemperature Shutdown (OTS)Fault Condition Indication Pin (nFAULT)H-Bridge Motor Driver IndividualDrives a DC Motor or Other LoadsLow RDS(on)MOSFETs (0.4-Ω TYP)Low-Power Sleep Mode100% PWM Supported8- to 38-V Operating Supply Voltage RangeThermally Enhanced Surface Mount PackageConfigurable Overcurrent LimitProtection FeaturesVBB Undervoltage Lockout (UVLO)Charge Pump Undervoltage (CPUV)Overcurrent Protection (OCP)Short-to-Supply Protection (STS)Short-to-Ground Protection (STG)Overtemperature Warning (OTW)Overtemperature Shutdown (OTS)Fault Condition Indication Pin (nFAULT)

Description

The DRV8816 provides a versatile power driver solution with two independent ½-H bridge drivers. The device can drive one brushed DC motor or one winding of a stepper motor, as well as other devices like solenoids. A simple INx/ENx interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as ½-H-bridges. The DRV8816 is capable of peak output currents up to ±2.8 A and operating voltages up to 38 V. An internal charge pump generates needed gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided for UVLO, charge pump fault, OCP, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Fault conditions are indicated through a nFAULT pin The DRV8816 is packaged in a 16-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br) The DRV8816 provides a versatile power driver solution with two independent ½-H bridge drivers. The device can drive one brushed DC motor or one winding of a stepper motor, as well as other devices like solenoids. A simple INx/ENx interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as ½-H-bridges. The DRV8816 is capable of peak output currents up to ±2.8 A and operating voltages up to 38 V. An internal charge pump generates needed gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided for UVLO, charge pump fault, OCP, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Fault conditions are indicated through a nFAULT pin The DRV8816 is packaged in a 16-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br)
