1969815 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

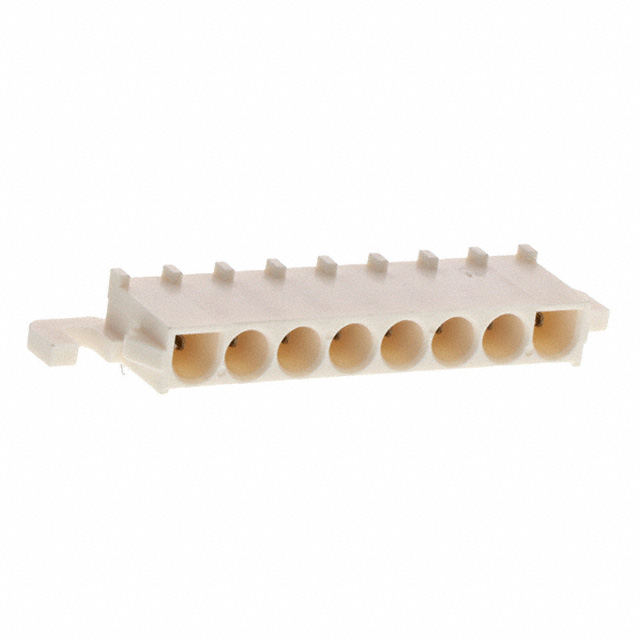

CONN HEADER R/A 8POS 6.35MM
| Part | Insulation Material | Insulation Height | Insulation Height | Contact Type | Pitch - Mating | Pitch - Mating | Features | Contact Shape | Applications | Connector Type | Termination | Style | Number of Positions | Number of Rows | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Shrouding | Material Flammability Rating | Contact Finish - Post | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 9.14 mm | 0.36 in | Male Pin | 6.35 mm | 0.25 in | Glow Wire Compliant Mounting Flange | Circular | General Purpose | Header | Solder | Board to Cable/Wire | 8 | 1 | All | 4.06 mm | 0.16 in | Shrouded - 4 Wall | UL94 V-0 | Tin | Phosphor Bronze | Through Hole Right Angle |
