78162 Series

Catalog

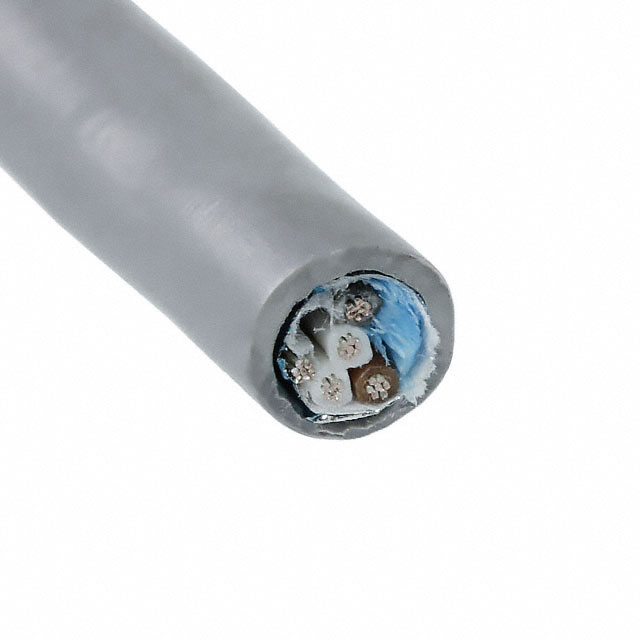

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 2 PAIR, 26 AWG, 0.154 MM², 100 FT, 30.5 M

Part	Shield Coverage	Shield Material	Wire Gauge	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Insulation	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length [x]	Length [x]	Jacket Color	Cable Type	Voltage	Shield Type	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 78162 SL005	100 %	Aluminum	26 AWG	4	80 °C	-40 C	Polyphenylene Ether Modified (mPPE)	19	38	Drain Wire Rip Cord	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in	100 ft	30.5 m	Slate	Multi-Pair	300 VDC	Foil	UL Style 21460	Copper Tinned	0.15 in	3.81 mm
ALPHA WIRE 78162 SL199	100 %	Aluminum	26 AWG	4	80 °C	-40 C	Polyphenylene Ether Modified (mPPE)	19	38	Drain Wire Rip Cord	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in	1 '	300 mm	Slate	Multi-Pair	300 VDC	Foil	UL Style 21460	Copper Tinned	0.15 in	3.81 mm
ALPHA WIRE 78162 SL001	100 %	Aluminum	26 AWG	4	80 °C	-40 C	Polyphenylene Ether Modified (mPPE)	19	38	Drain Wire Rip Cord	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in			Slate	Multi-Pair	300 VDC	Foil	UL Style 21460	Copper Tinned	0.15 in	3.81 mm	304.8 m	1000 ft
