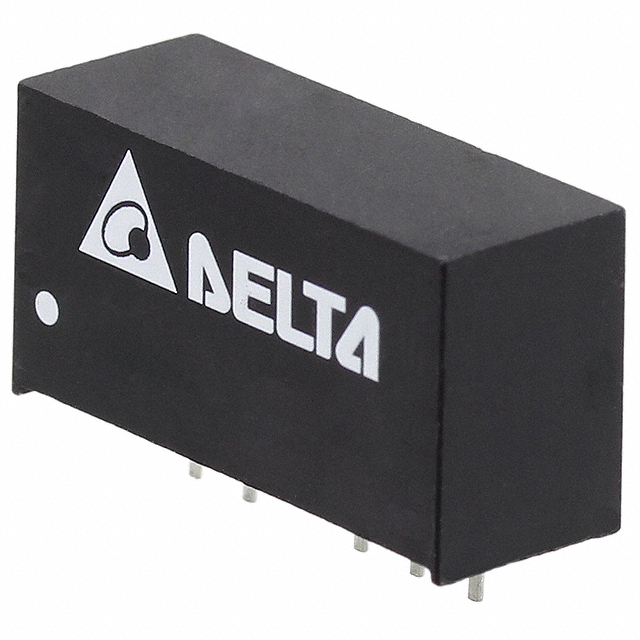

PE01D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC/DC CONVERTER, +/-15VOUT, 1W

Part	Type	Features	Voltage - Isolation	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Output 2	Mounting Type	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Delta Electronics PE01D0515A	Isolated Module	SCP	1000 V	86.5 %	4.5 V	34 mA	34 mA	85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	15 V	5.5 V	-15 V	Through Hole	6-SIP Module 5 Leads
Delta Electronics PE01D2405A	Isolated Module	SCP	1000 V	83.5 %	21.6 V			85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	5 V	26.4 V	-5 V	Through Hole	6-SIP Module 5 Leads	100 mA	100 mA
Delta Electronics PE01D1215A	Isolated Module	SCP	1000 V	87.5 %	10.8 V	34 mA	34 mA	85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	15 V	13.2 V	-15 V	Through Hole	6-SIP Module 5 Leads
Delta Electronics PE01D1205A	Isolated Module	SCP	1000 V	84.5 %	10.8 V			85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	5 V	13.2 V	-5 V	Through Hole	6-SIP Module 5 Leads	100 mA	100 mA
Delta Electronics PE01D2412A	Isolated Module	SCP	1000 V	87 %	21.6 V			85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	12 V	26.4 V	-12 V	Through Hole	6-SIP Module 5 Leads			42 mA
Delta Electronics PE01D2409A	Isolated Module	SCP	1000 V	86 %	21.6 V	56 mA		85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	9 V	26.4 V	-9 V	Through Hole	6-SIP Module 5 Leads
Delta Electronics PE01D0512A	Isolated Module	SCP	1000 V	86.5 %	4.5 V			85 °C	-40 C	2	Medical	0.4 "	0.24 "	0.77 in	6 mm	10.2 mm	19.6 mm	12 V	5.5 V	-12 V	Through Hole	6-SIP Module 5 Leads			42 mA
