38.51.0 Series

Catalog

RELAY GEN PURPOSE SPDT 6A 125V

Part	Coil Resistance	Release Time	Must Release Voltage	Contact Rating (Current)	Mounting Type	Operate Time	Contact Material	Switching Voltage [Max]	Contact Form	Relay Type	Features	Must Operate Voltage	Approval Agency	Termination Style	Coil Current	Coil Voltage	Coil Voltage	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Voltage
Finder Relays, Inc. 38.51.0.125.5060	25 kOhms	6 ms	12.5 VAC/DC	6 A	DIN Rail	5 ms	Gold (Au) Silver Nickel (AgNi)	400 VAC	SPDT (1 Form C)	General Purpose	Socket Included	88 VAC/DC	CE CSA cURus EAC RINA UKCA	Screw Terminal	5 mA	125 VDC	125 VAC	2400 VA	55 °C	-40 C	Non Latching

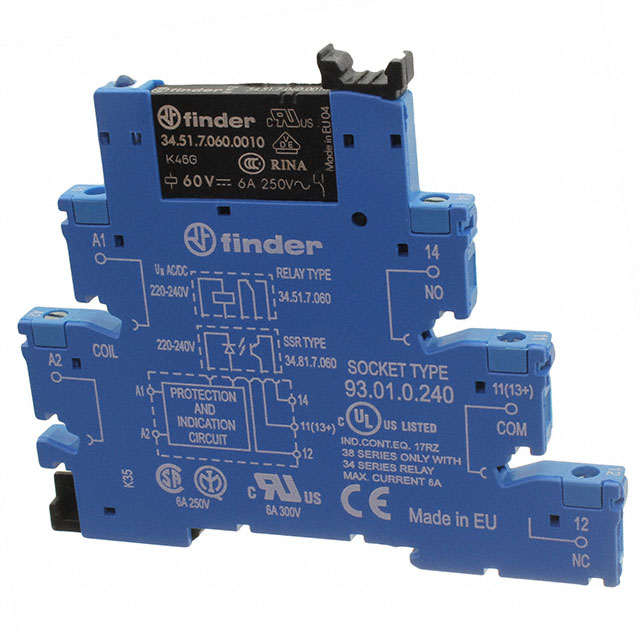

Finder Relays, Inc. 38.51.0.240.0060	60 kOhms	6 ms	24 VAC	6 A	DIN Rail	5 ms	Silver Nickel (AgNi)	400 VAC	SPDT (1 Form C)	General Purpose	Socket Included	176 VAC	CE CSA cURus EAC RINA UKCA	Screw Terminal	4 mA		240 VAC/DC	2400 VA	55 °C	-40 C	Non Latching

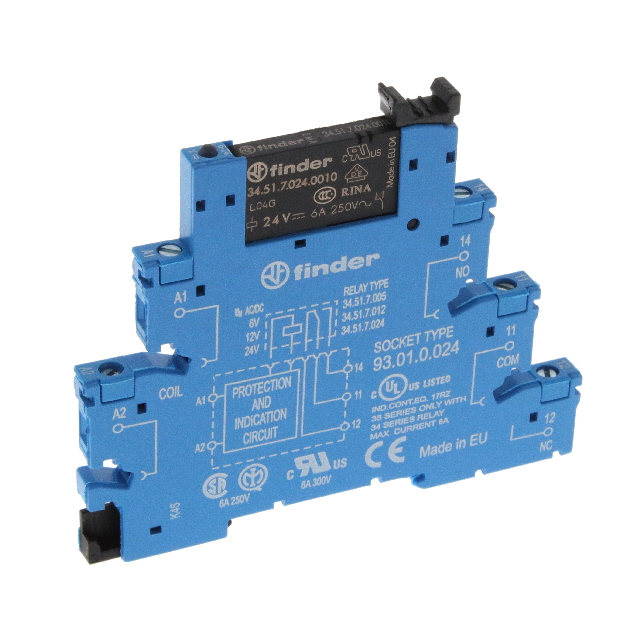

Finder Relays, Inc. 38.51.0.024.0060	2 Ohms	6 ms	2.4 VAC/DC	6 A	DIN Rail	5 ms	Silver Nickel (AgNi)	400 VAC	SPDT (1 Form C)	General Purpose	Socket Included	19.2 VAC	CE CSA cURus EAC RINA UKCA	Screw Terminal	12 mA		24 VAC	2400 VA	70 °C	-40 C	Non Latching
Finder Relays, Inc. 38.51.0.240.5060	60 kOhms	6 ms	24 VAC	6 A	DIN Rail	5 ms	Gold (Au) Silver Nickel (AgNi)	400 VAC	SPDT (1 Form C)	General Purpose	Socket Included	176 VAC	CE CSA cURus EAC RINA UKCA	Screw Terminal	4 mA		240 VAC/DC	2400 VA	55 °C	-40 C	Non Latching
Finder Relays, Inc. 38.51.0.048.0060	7000 Ohms	6 ms	4.8 VAC	6 A	DIN Rail	5 ms	Silver Nickel (AgNi)	400 VAC	SPDT (1 Form C)	General Purpose	Socket Included	38.4 VAC	CE CSA cURus EAC RINA UKCA	Screw Terminal	6.9 mA			2400 VA	70 °C	-40 C	Non Latching	48VAC/DC
