T 3505 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG HSG FMALE 8POS INLINE

Part	Contact Type	Shell Material	Contact Size	Shell Size - Insert	Note	Housing Color	Mounting Type	Contact Shape	Shielding	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Number of Positions	Fastening Type	Material Flammability Rating	Orientation	Features	Shell Finish	Type	Contact Finish - Mating	Color	Primary Material	Voltage Rating	Current Rating (Amps)
Amphenol Tuchel Industrial T 3505 554	Crimp	Die Cast	1.5 mm	M16-8	Contacts Not Included	Black Silver	Free Hanging (In-Line)	Circular	Shielded	Plug Housing	IP40	-40 C	100 °C	Thermoplastic	8	Threaded	UL94 V-0	Keyed	Backshell Cable Clamp Coupling Nut	Nickel	For Female Sockets
Amphenol Tuchel Industrial T 3505 013		Die Cast		M16-8			Free Hanging (In-Line)		Shielded	Plug Female Sockets	IP40	-40 C	100 °C		8	Threaded		Keyed	Strain Relief	Nickel		Silver	Silver	Metal	250 V	7 A
Amphenol Tuchel Industrial T 3505 004		Die Cast		M16-8			Free Hanging (In-Line)		Shielded	Plug Female Sockets	IP40	-40 C	100 °C		8	Threaded		Keyed	Cable Clamp Strain Relief	Nickel		Silver	Silver	Metal	250 V	7 A
Amphenol Tuchel Industrial T 3505 005		Die Cast		M16-8			Free Hanging (In-Line) Right Angle		Shielded	Plug Female Sockets	IP40	-40 C	100 °C		8	Threaded		Keyed	Strain Relief	Nickel		Silver	Silver	Metal	250 V	7 A
Amphenol Tuchel Industrial T 3505 028		Die Cast		M16-8			Free Hanging (In-Line)		Shielded	Plug Female Sockets	IP40	-40 C	100 °C		8	Threaded		Keyed	Cable Clamp Strain Relief	Nickel		Gold	Silver	Metal	250 V	7 A

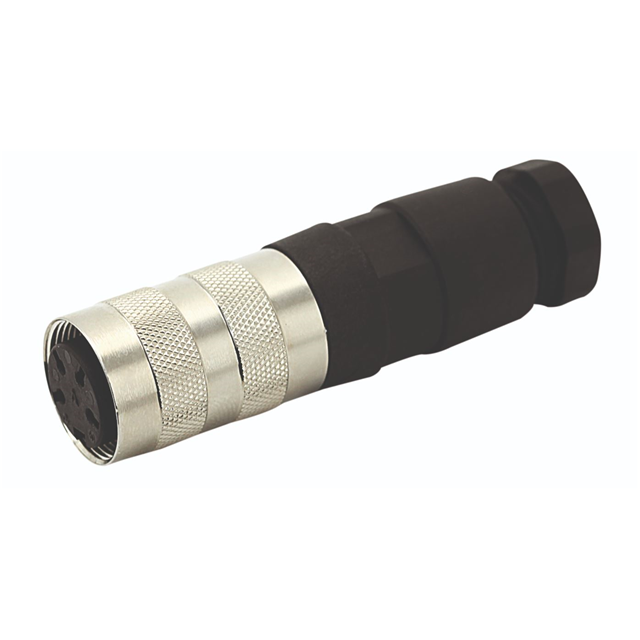

Amphenol Tuchel Industrial T 3505 552	Crimp	Die Cast	1.5 mm	M16-8	Contacts Not Included	Black Silver	Free Hanging (In-Line)	Circular	Shielded	Plug Housing	IP40	-40 C	100 °C	Thermoplastic	8	Threaded	UL94 V-0	Keyed	Backshell Cable Clamp Coupling Nut	Nickel	For Female Sockets
