TPS72715 Series

Catalog

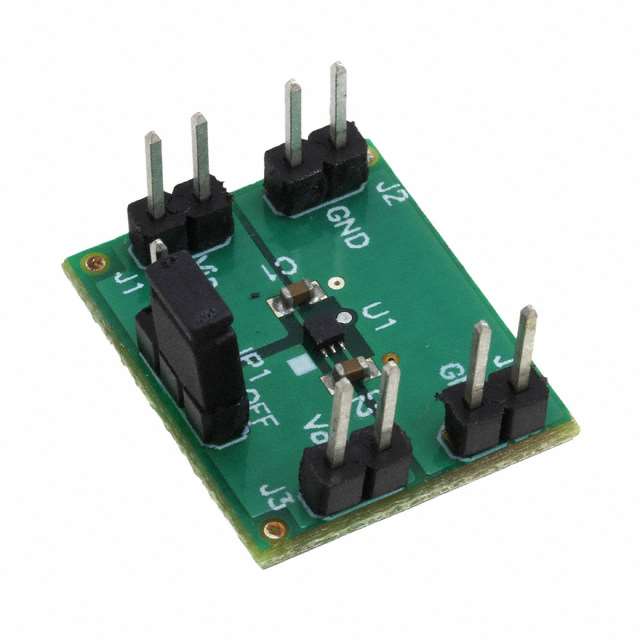

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPS72715DSEEVM-406

Part	Supplied Contents	Board Type	Regulator Type	Voltage - Output	Contents	Channels per IC	Utilized IC / Part	Current - Output	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Control Features	PSRR [Min]	PSRR [Max]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Output Configuration	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage Dropout (Max) [Max]	Number of Regulators
Texas Instruments TPS72715DSEEVM-406	Board(s)	Fully Populated	Positive Fixed	1.5 V	Board(s)	1	TPS72715	0.2 A
Texas Instruments TPS72715YFFR								250 mA	4-UFBGA DSBGA	Surface Mount	5.5 V	Enable	45 dB	85 dB	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	130 µA	Positive	110 µA	1.5 V	4-DSBGA (1x1)	0.2 V	1
Texas Instruments TPS72715DSET								250 mA	6-WFDFN	Surface Mount	5.5 V	Enable	45 dB	85 dB	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	130 µA	Positive	110 µA	1.5 V		0.2 V	1
Texas Instruments TPS72715YFFEVM-407	Board(s)	Fully Populated	Positive Fixed	1.5 V	Board(s)	1	TPS72715	300 mA
Texas Instruments TPS72715DSER								250 mA	6-WFDFN	Surface Mount	5.5 V	Enable	45 dB	85 dB	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	130 µA	Positive	110 µA	1.5 V		0.2 V	1
Texas Instruments TPS72715YFFT								250 mA	4-UFBGA DSBGA	Surface Mount	5.5 V	Enable	45 dB	85 dB	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	130 µA	Positive	110 µA	1.5 V	4-DSBGA (1x1)	0.2 V	1
