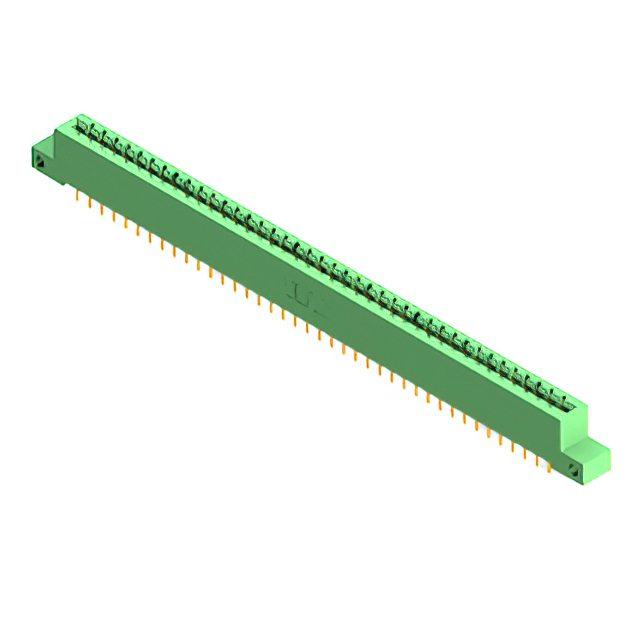

837-080 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 80POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions | Gender | Pitch | Pitch | Number of Rows [custom] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Wire Wrap | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Wire Wrap | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Wire Wrap | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder | Right Angle Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Solder | Right Angle Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Non Specified - Dual Edge | 40 | 80 | Female | 3.96 mm | 0.156 in | 2 | Gold | 125 °C | -40 C | Wire Wrap | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Cantilever |
