NPPC351 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

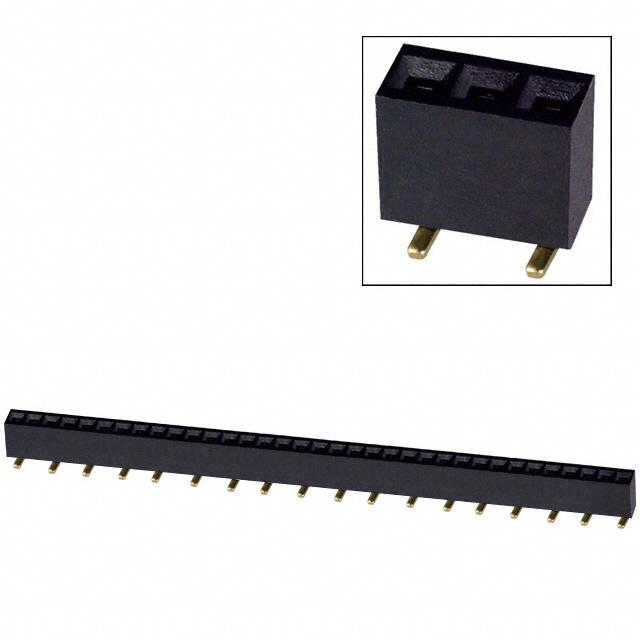

CONN HDR 35POS 0.1 GOLD SMD
| Part | Contact Finish Thickness - Post | Contact Material | Insulation Material | Contact Shape | Insulation Height | Insulation Height | Fastening Type | Mounting Type | Insulation Color | Connector Type | Number of Positions Loaded | Material Flammability Rating | Contact Finish Thickness - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Rows | Contact Type | Contact Finish - Mating | Termination | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | 0.28 in | 7.1 mm | Push-Pull | Surface Mount | Black | Header Top or Bottom Entry | All | UL94 V-0 | Flash | 35 | 0.1 " | 2.54 mm | Gold | 1 | Female Socket | Gold | Solder | 250 V | 3 A | -40 C | 105 ░C |
