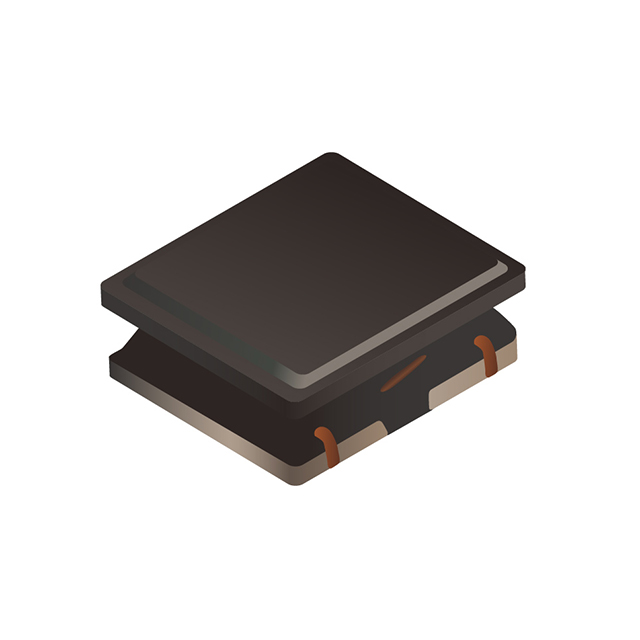

SRN2510F Series

Catalog

SRN2510F-R47M0.47UH20%,3.8A,SEMI-SHD,SMD /TAPE & REEL - 7" REEL

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	DC Resistance (DCR) [Max]	Shielding	Material - Core	Supplier Device Package	Package / Case	Package / Case	Inductance Frequency - Test	Current Rating (Amps)	Inductance	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)
Bourns Inc. SRN2510F-R47M	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	20 %	35 mOhm	Shielded	Metal	1008	2520 Metric	1008	1 MHz	4.6 A	470 nH	120 MHz	0.039 in	1 mm	125 °C	-40 C	7 A
Bourns Inc. SRN2510F-2R2M	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	20 %	93 mOhm	Shielded	Metal	1008	2520 Metric	1008	1 MHz	2.6 A	2.2 µH	40 MHz	0.039 in	1 mm	125 °C	-40 C	2.8 A
Bourns Inc. SRN2510F-4R7M	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	20 %	216 mOhm	Shielded	Metal	1008	2520 Metric	1008	1 MHz	1.7 A	4.7 ÁH	20 MHz	0.039 in	1 mm	125 °C	-40 C	1.7 A
