176PC14 Series

Catalog

SENSOR 0.51PSID 0.28" .035V

Part	Termination Style	Operating Pressure	Operating Pressure	Accuracy	Output [Min]	Output	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Output Type	Applications	Features	Maximum Pressure	Maximum Pressure	Pressure Type

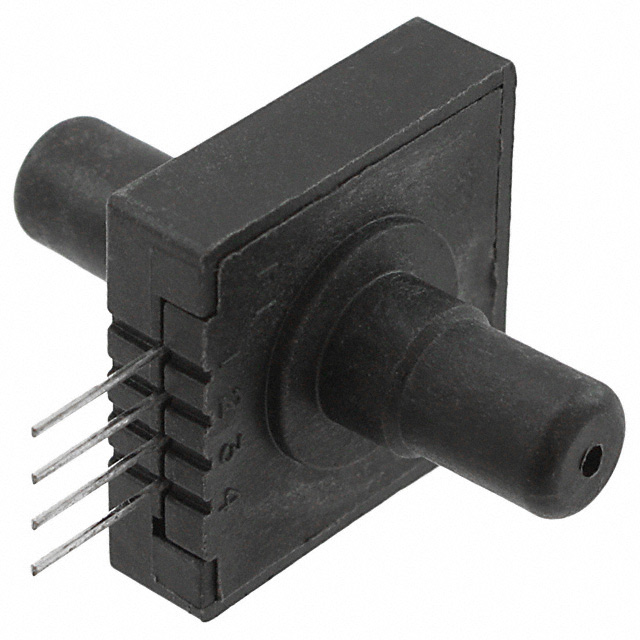

Honeywell Sensing and Productivity Solutions 176PC14HD2	PC Pin	3.49 kPa	0.51 PSI	3 %	0 mV	10 V	35 mV	10 VDC	16 V	Dual Male Tube	0.28 in	7.11 mm	Barbless	85 °C	-40 C	4-SIP Module	Through Hole	Wheatstone Bridge	Board Mount	Temperature Compensated	5.06 PSI	34.88 kPa	Differential
