USB Connectors IP68 Sealed Mini USB Port
USB Connectors IP68 Sealed Mini USB Port
| Part | Shell/Shielding Material | Current Rating (Amps) | Features | Shielding | Insulation Color | Ingress Protection | Mounting Feature | Termination | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Gender | Number of Contacts | Contact Finish | Number of Ports | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

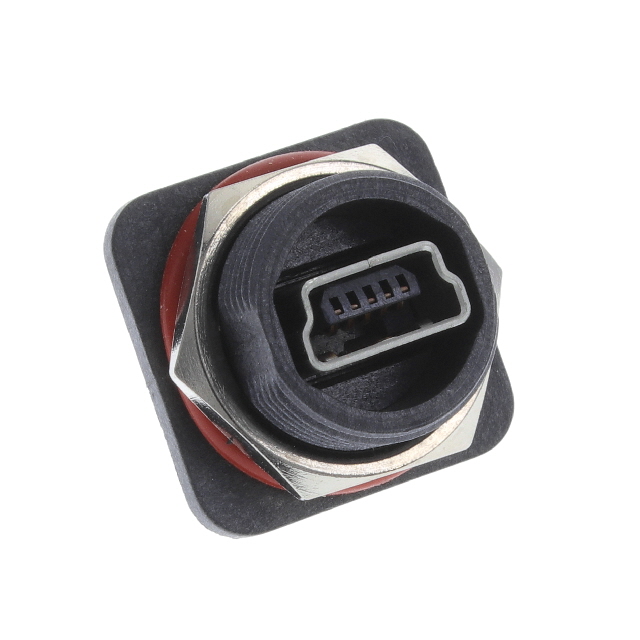

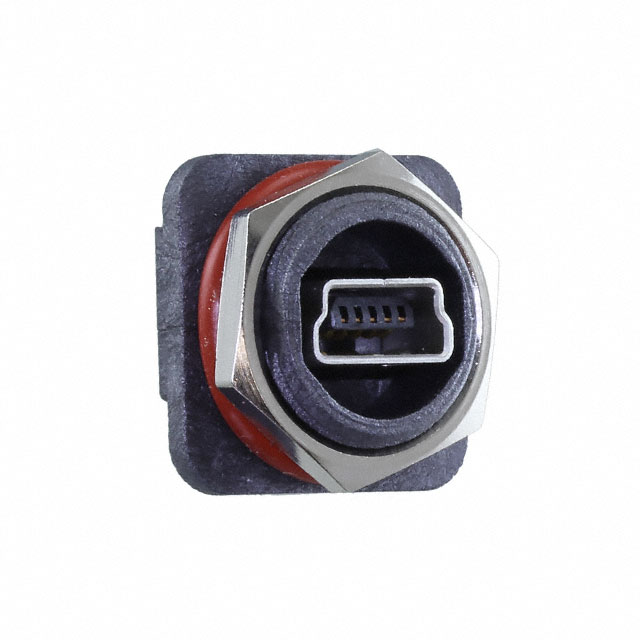

 Samtec Inc. | Phosphor Bronze | 1.9 A | Board Lock Circular Threaded Coupling | Shielded | Black | IP68 - Dust Tight Waterproof | Flange Horizontal | Solder | 1000 | -55 °C | 125 °C | 190 V | Receptacle | 5 | Gold | 1 | USB - mini B | Panel Mount Right Angle Through Hole |
 Samtec Inc. | Phosphor Bronze | 1.9 A | Circular Threaded Coupling | Shielded | Black | IP68 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Solder | 1000 | -55 °C | 125 °C | 190 V | Receptacle | 5 | Gold | 1 | USB - mini B | Panel Mount Through Hole |
