895-039 Series
Manufacturer: EDAC Inc.
Beta
⌘K

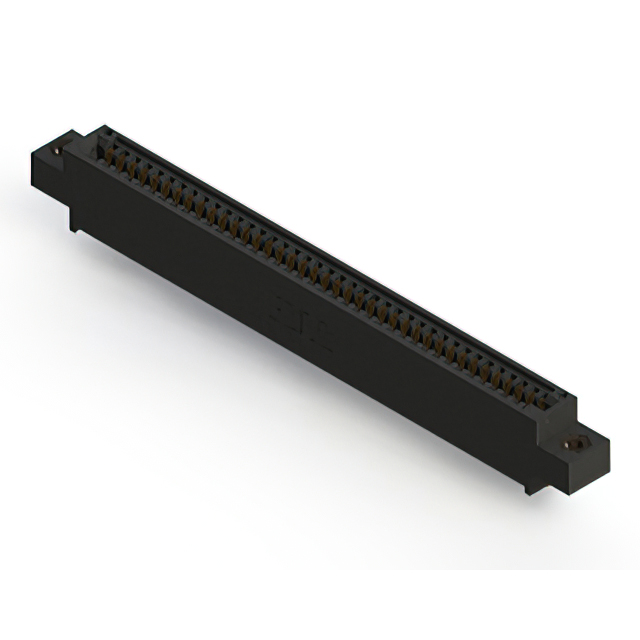

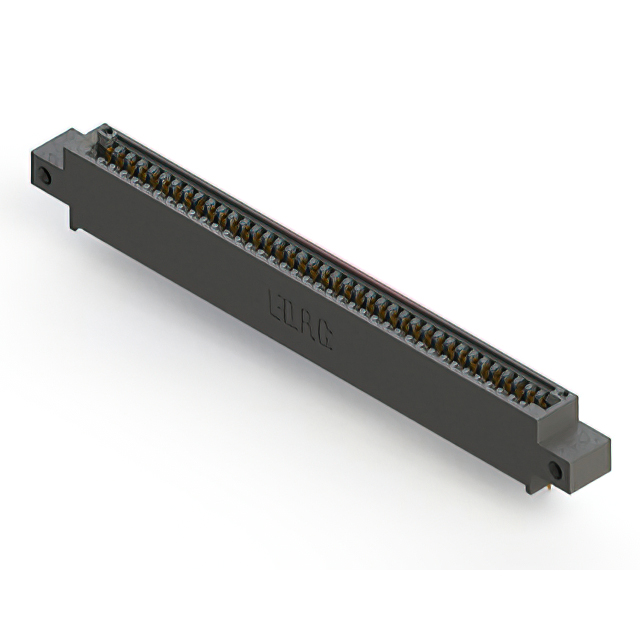

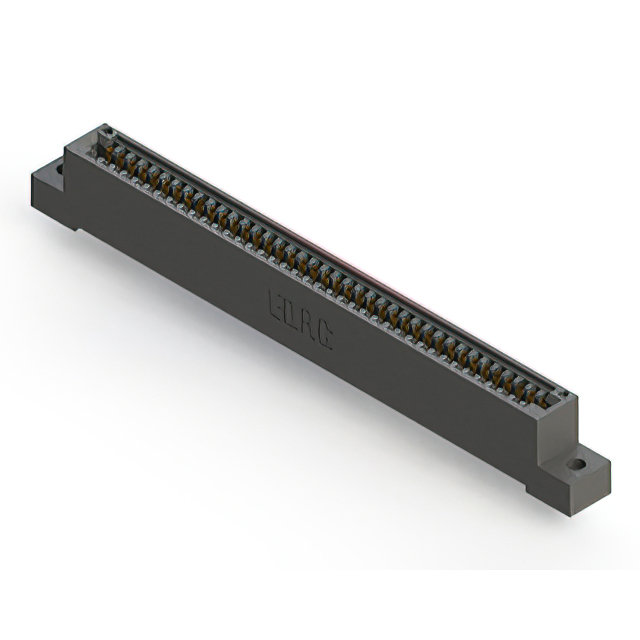

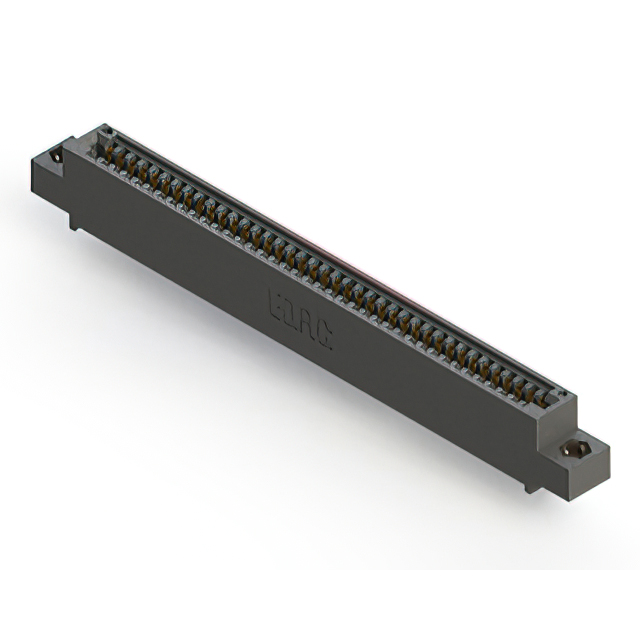

CONN EDGE SINGLE FML 39POS 0.100
| Part | Material - Insulation | Termination Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Pitch | Pitch | Gender | Number of Positions/Bay/Row | Contact Type | Color | Mounting Type | Number of Positions | Card Type | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | M3 Threaded Insert Top Mount Opening | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 4-40 Threaded Insert Top Mount Opening | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 4-40 Threaded Insert Top Mount Opening | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Wire Wrap | Copper Alloy | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder Eyelet(s) | Copper Alloy | 0.25 Ám | 10 Áin |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | M3 Threaded Insert Top Mount Opening | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.128 " | 3.25 mm | Single | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.1 " | 2.54 mm | Female | 39 | Cantilever | Black | Through Hole | 39 | Non Specified - Single Edge | Solder | Copper Alloy | 0.25 Ám | 10 Áin |
