T 3356 Series

Catalog

CONN PLUG HSNG MALE 5POS INLINE

Part	Housing Color	Number of Positions	Ingress Protection	Type	Fastening Type	Shell Material	Insert Material	Connector Type	Orientation	Contact Size	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Mounting Type	Note	Shielding	Shell Size - Insert	Shell Finish	Contact Finish - Mating	Current Rating (Amps)	Color	Primary Material	Voltage Rating
Amphenol Tuchel Industrial T 3356 554	Black Silver	5	IP40	For Male Pins	Threaded	Die Cast	Thermoplastic	Plug Housing	Keyed	1.5 mm	Backshell Cable Clamp Coupling Nut Stereo	Crimp	-40 C	100 °C	Circular	UL94 V-0	Free Hanging (In-Line)	Contacts Not Included	Shielded	M16-5(S)	Nickel

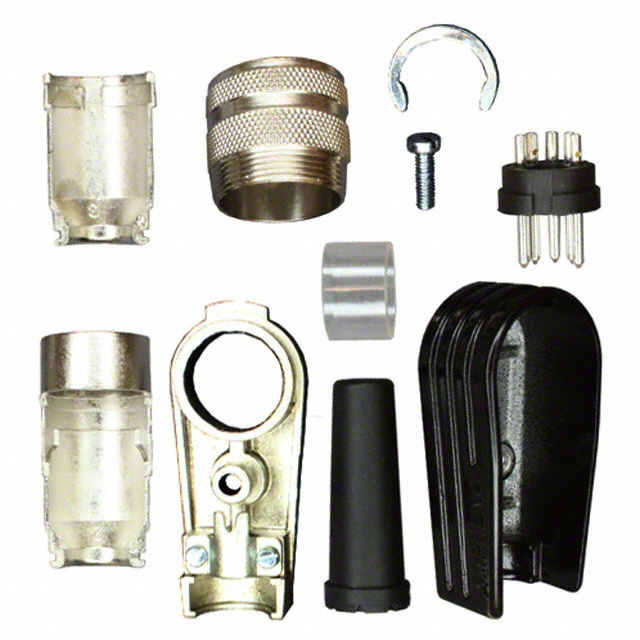

Amphenol Tuchel Industrial T 3356 005		5	IP40		Threaded	Die Cast		Plug Male Pins	Keyed		Stereo Strain Relief		-40 C	100 °C			Free Hanging (In-Line) Right Angle		Shielded	M16-5(S)	Nickel	Silver	7 A	Silver	Metal	250 V
Amphenol Tuchel Industrial T 3356 004		5	IP40		Threaded	Die Cast		Plug Male Pins	Keyed		Cable Clamp Stereo Strain Relief		-40 C	100 °C			Free Hanging (In-Line)		Shielded	M16-5(S)	Nickel	Silver	7 A	Silver	Metal	250 V
Amphenol Tuchel Industrial T 3356 551	Silver	5	IP40	For Male Pins	Threaded	Die Cast	Thermoplastic	Plug Housing	Keyed	1.5 mm	Cable Clamp Coupling Nut Stereo Strain Relief	Crimp	-40 C	100 °C	Circular	UL94 V-0	Free Hanging (In-Line)	Contacts Not Included	Shielded	M16-5(S)	Nickel
