325-118 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 118POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Number of Rows [custom]	Gender	Color	Mounting Type	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Material	Read Out	Card Thickness	Card Thickness	Pitch	Pitch	Card Type	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]

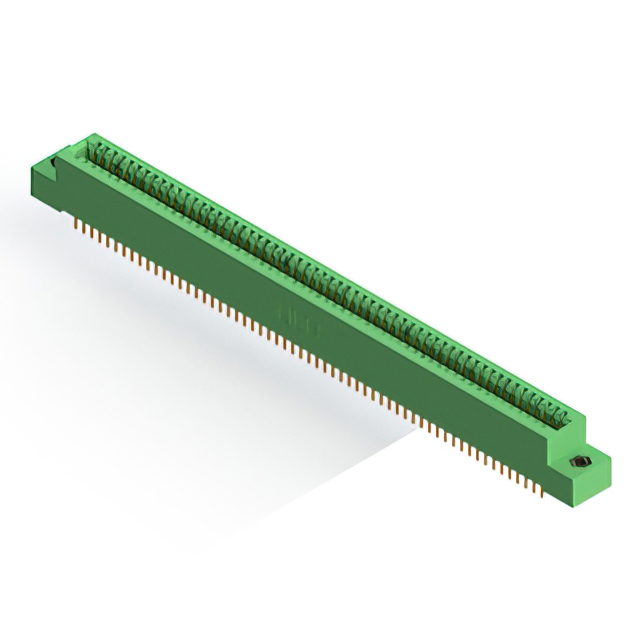

EDAC Inc. 325-118-520-207	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Solder	-65 ░C	125 °C	59	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118

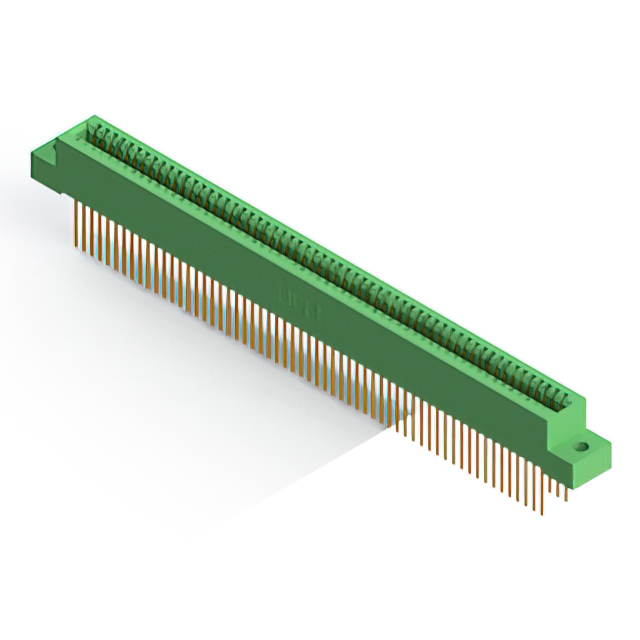

EDAC Inc. 325-118-540-209	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Wire Wrap	-65 ░C	125 °C	59	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118	0.16 "	4.06 mm
EDAC Inc. 325-118-520-208	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Solder	-65 ░C	125 °C	59	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118

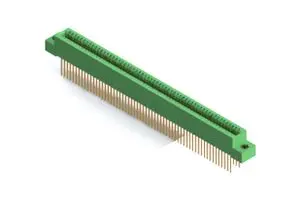

EDAC Inc. 325-118-540-208	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Wire Wrap	-65 ░C	125 °C	59	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118

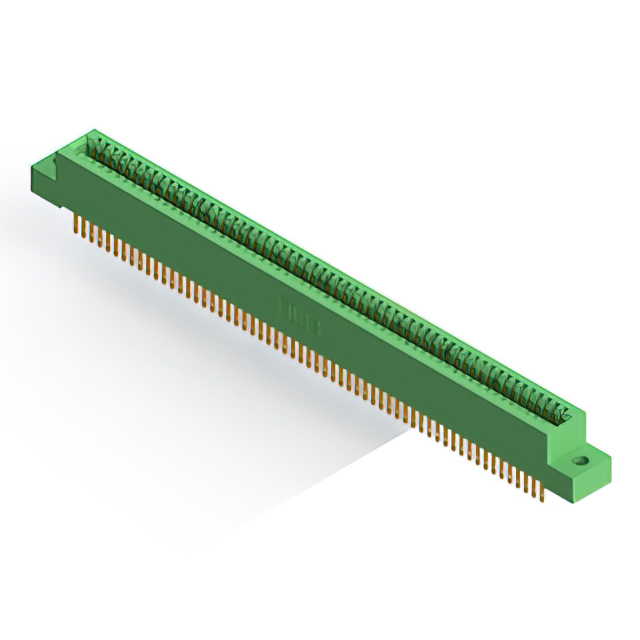

EDAC Inc. 325-118-500-209	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Solder Eyelet(s)	-65 ░C	125 °C	59	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118	0.16 "	4.06 mm
EDAC Inc. 325-118-540-207	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Wire Wrap	-65 ░C	125 °C	59	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118
EDAC Inc. 325-118-500-208	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Solder Eyelet(s)	-65 ░C	125 °C	59	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118
EDAC Inc. 325-118-520-201	2	Diallyl Phthalate (DAP)	Cantilever	2	Female	Green	Through Hole	Gold	Solder	-65 ░C	125 °C	59	0.25 Ám	10 Áin		Copper Alloy	Dual	3.18 mm	0.125 in	0.1 "	2.54 mm	Non Specified - Dual Edge	118
