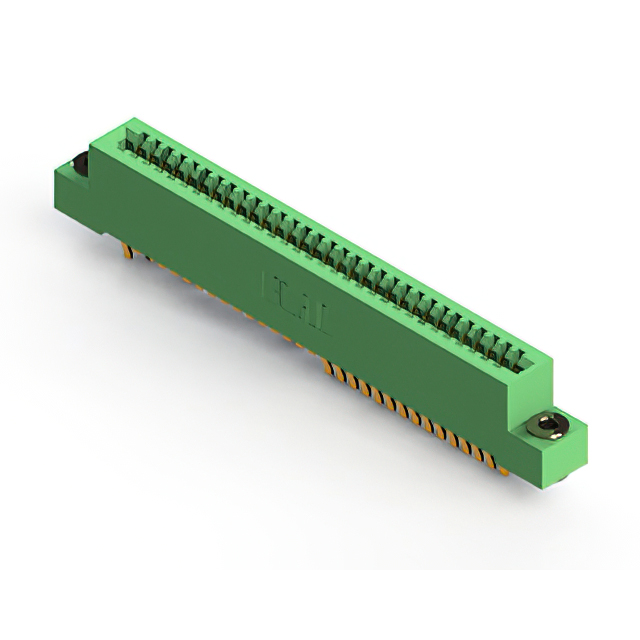

842-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Color	Number of Positions	Number of Rows [custom]	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Pitch	Pitch	Read Out	Number of Positions/Bay/Row [custom]	Card Thickness [Max]	Card Thickness [Min]	Features

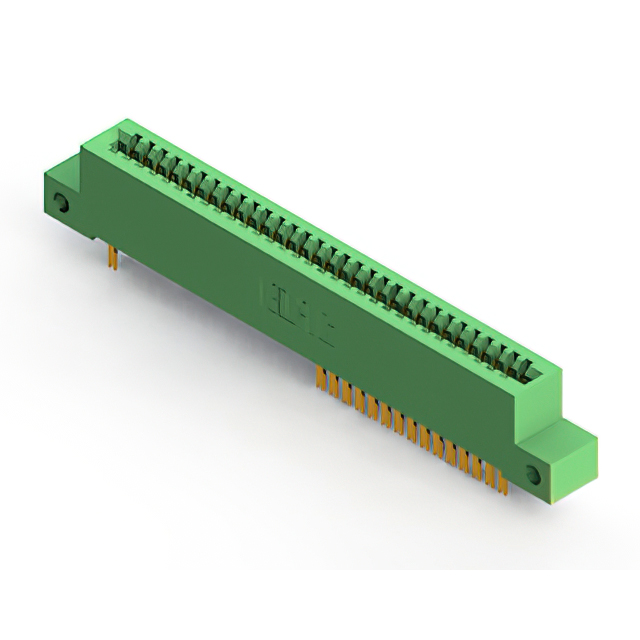

EDAC Inc. 842-062-500-212	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Solder Eyelet(s)	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm

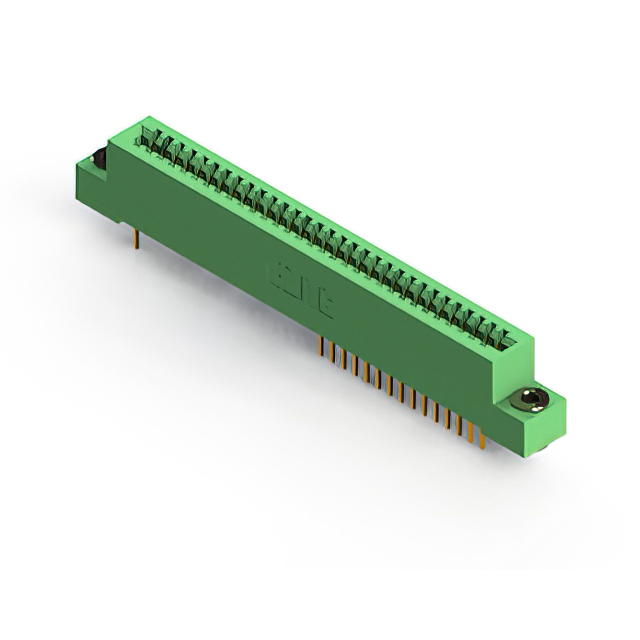

EDAC Inc. 842-062-542-203	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Wire Wrap	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm

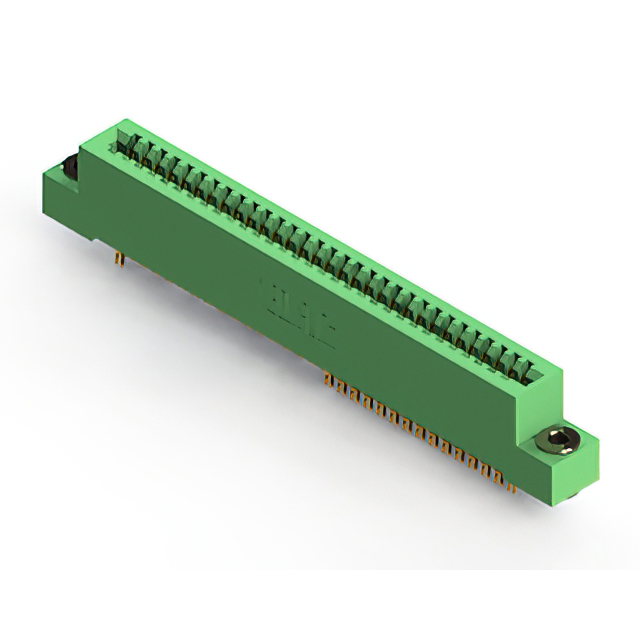

EDAC Inc. 842-062-555-203	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Solder	Board Edge Straddle Mount	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 842-062-555-207	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Solder	Board Edge Straddle Mount	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

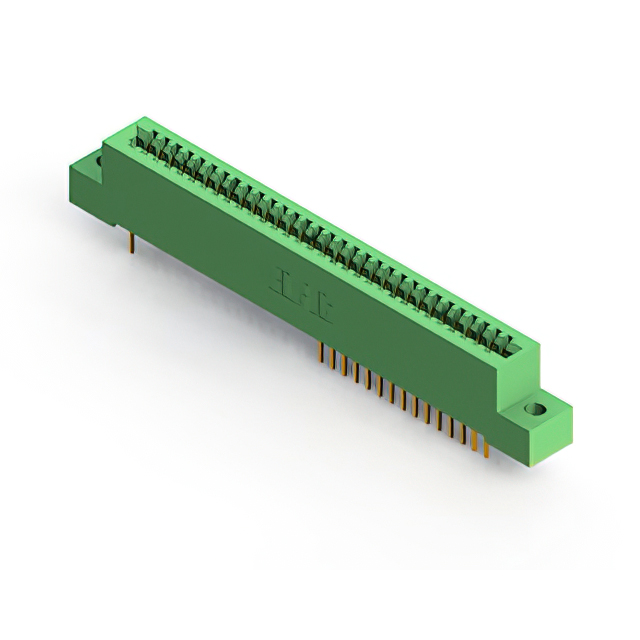

EDAC Inc. 842-062-540-202	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Wire Wrap	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm

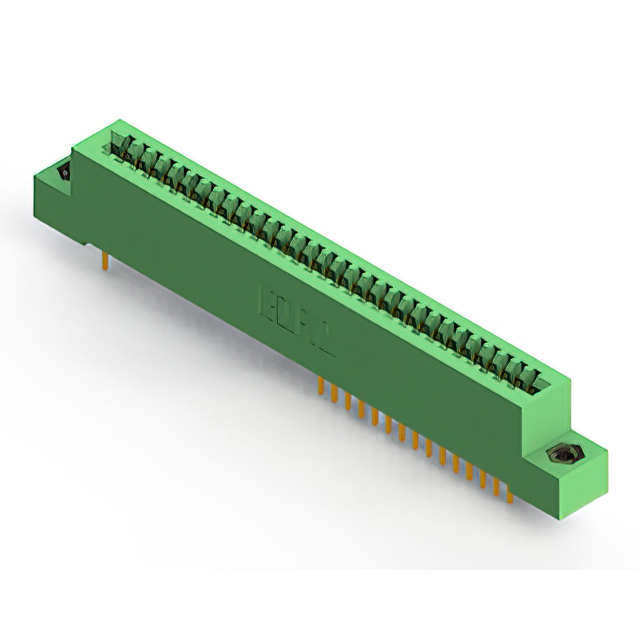

EDAC Inc. 842-062-521-208	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Solder	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-062-558-202	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Solder	Right Angle Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm

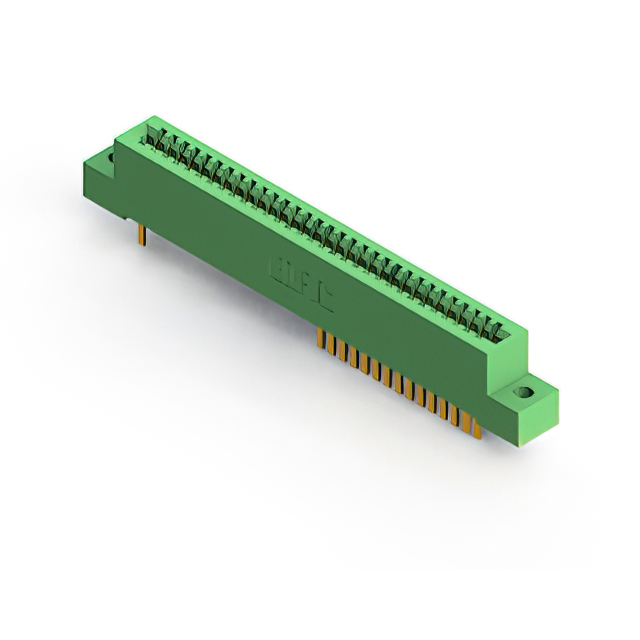

EDAC Inc. 842-062-544-202	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Wire Wrap	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm

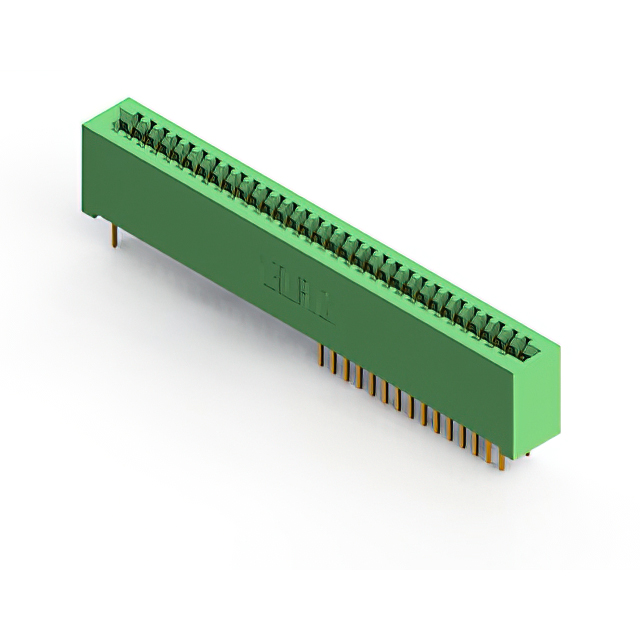

EDAC Inc. 842-062-540-201	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Wire Wrap	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy				Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-062-541-212	2	Diallyl Phthalate (DAP)	Female	125 °C	-40 C	Wire Wrap	Through Hole	Green	62	2	Cantilever	Gold	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	31	0.07 in 1.78 mm	0.054 in 1.37 mm
