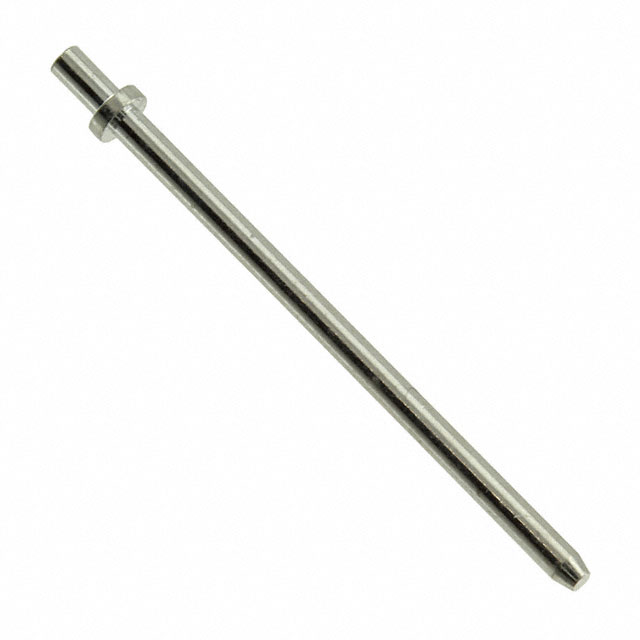

H2171 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, PIN, 1.09MM, 21.64MM ROHS COMPLIANT: YES
| Part | Length - Overall [x] | Length - Overall [x] | Insulation | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Board Thickness | Board Thickness | Contact Finish | Mounting Type | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.852 in | 21.64 mm | Non-Insulated | Brass | 1.77 mm | 0.07 in | Swage | PC Pin | 0.75 in | 19.05 mm | 0.041 in | 1.04 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | 0.063 in | 1.6 mm | Tin | Through Hole | Single End | 2.08 mm | 0.082 " |
