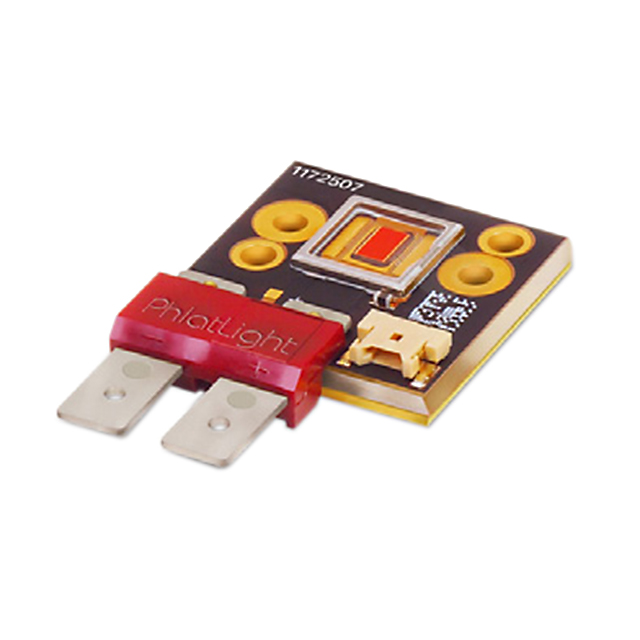

PT-121 Series

Catalog

LED MOD PT-121 AMBER RECT

Part	Current - Max [Max]	Type	Height [z]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Configuration	Temperature - Test	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Lumens/Watt @ Current - Test	Wavelength	Lens Type	Current - Test	Features	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color
Luminus Devices Inc. PT-121-RAX-L15-MPH	27 A	LED Module	5.7 mm	4 mm	3 mm	Rectangle	40 °C	2575 lm	2150 lm	3000 lm	48 lm/W	613 nm	Flat	18 A	With Connector	42 mm	28 mm	3 V	Amber

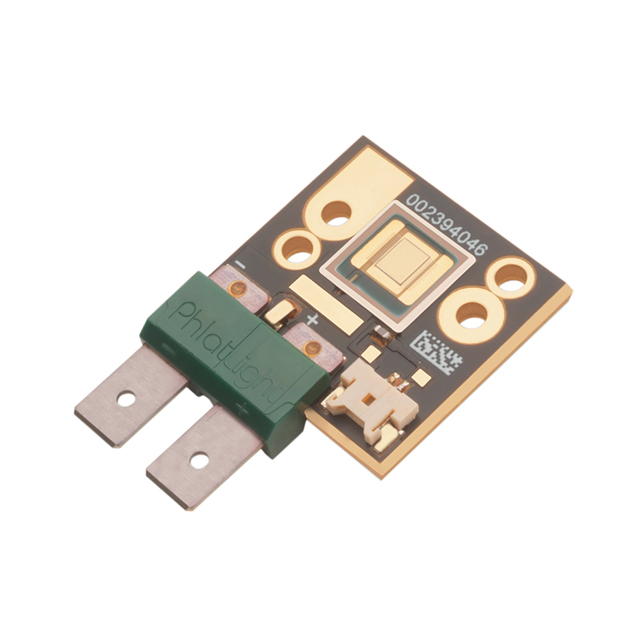

Luminus Devices Inc. PT-121-G-L11-MPM	27 A	LED Module	5.61 mm	4 mm	3 mm	Rectangle	40 °C	5425 lm	4650 lm	6200 lm	58 lm/W	525 nm	Flat	18 A	With Connector	42 mm	28 mm	5.2 V	Green
Luminus Devices Inc. PT-121-B-L11-EPG	27 A	LED Module	5.61 mm	4 mm	3 mm	Rectangle	40 °C	1025 lm			15 lm/W	460 nm	Flat	18 A	With Connector	42 mm	28 mm	3.9 V	Blue

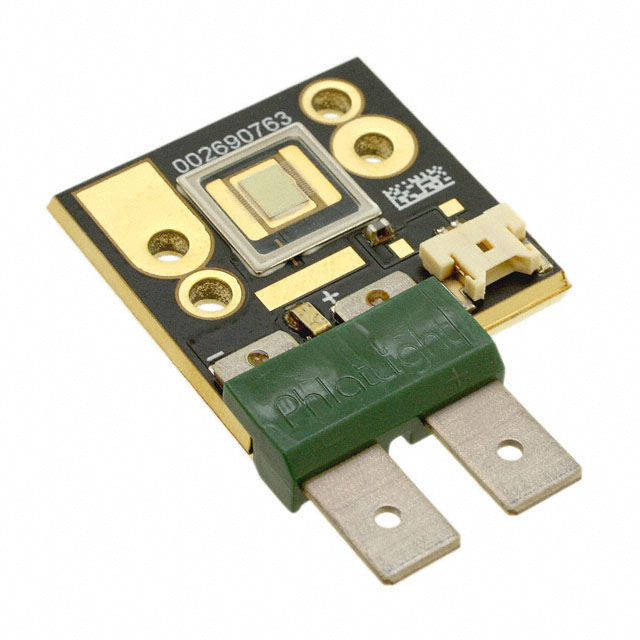

Luminus Devices Inc. PT-121-G-C11-MPB		LED Module
Luminus Devices Inc. PT-121-RAX-L15-MPK	27 A	LED Module	6.3 mm	4 mm	3 mm	Rectangle	40 °C	2925 lm			54 lm/W	613 nm	Flat	18 A	With Connector	42 mm	28 mm	3 V	Amber
