XC5B Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

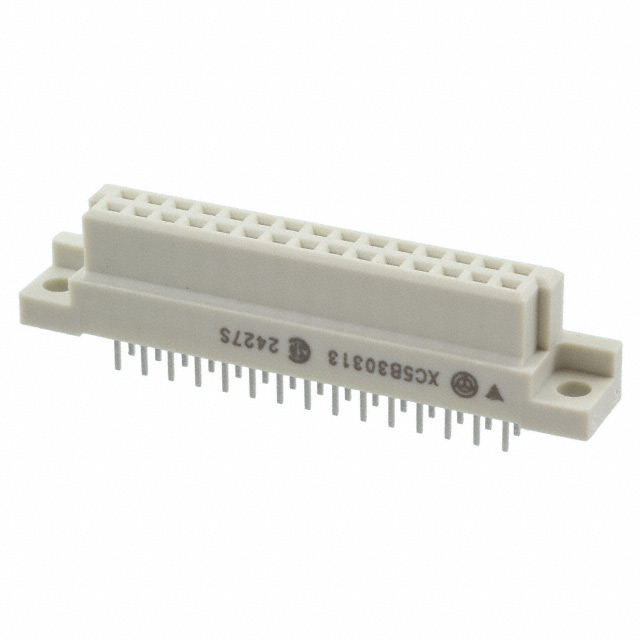

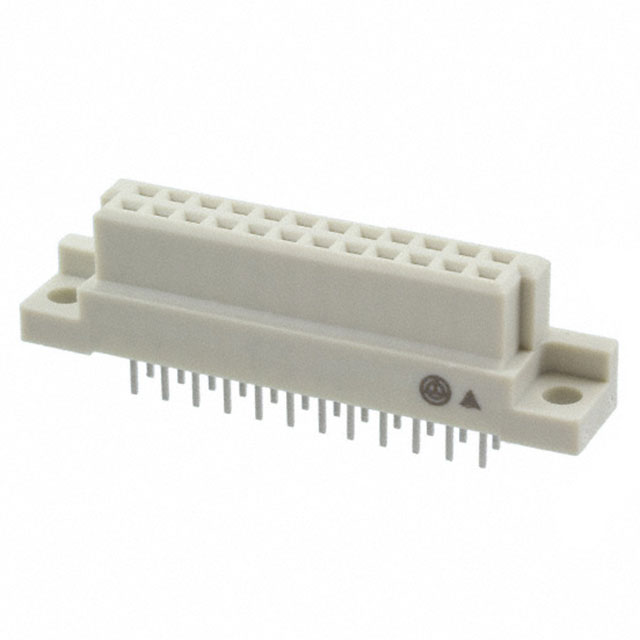

CONN DIN RCPT 24POS
| Part | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Mounting Type | Contact Finish | Pitch | Pitch | Number of Positions Loaded | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Type | Style | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | 24 | Receptacle Female Sockets | B | 2 |
 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.1 " | 2.54 mm | 30 | Receptacle Female Sockets | B | 2 | |||||
 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | Receptacle Female Sockets | B | 2 | |

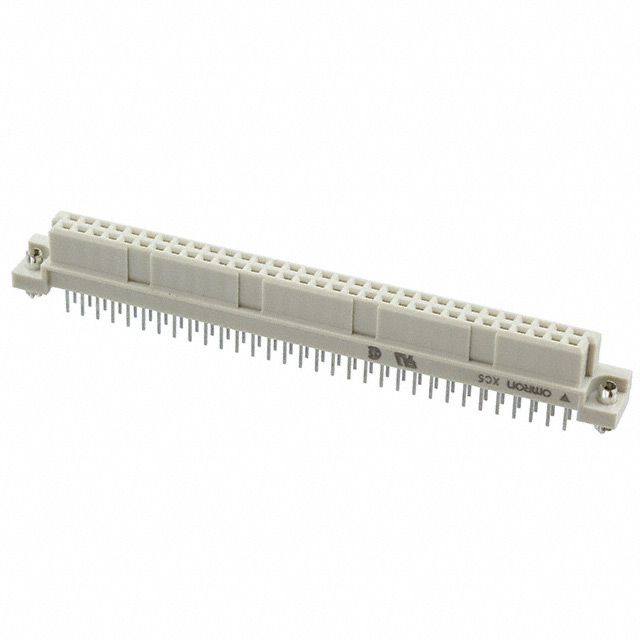

 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | 64 | Receptacle Female Sockets | B | 2 |
 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | Receptacle Female Sockets | B | 2 | |
 Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.1 " | 2.54 mm | 100 | Receptacle Female Sockets | B | 2 | |||||
Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | 64 | Receptacle Female Sockets | B | 2 |

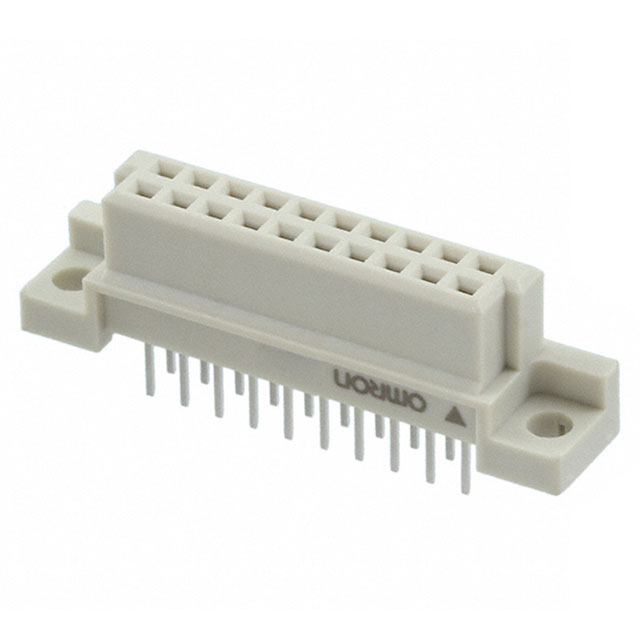

Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | 20 | Receptacle Female Sockets | B | 2 |
Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.1 " | 2.54 mm | 20 | Receptacle Female Sockets | B | 2 | |||||
Omron Electronics Inc-EMC Div | UL94 V-0 | 2 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Gold | 0.1 " | 2.54 mm | All | Solder | 16 µin | 0.41 µm | 10 | Receptacle Female Sockets | B | 2 |
