315-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

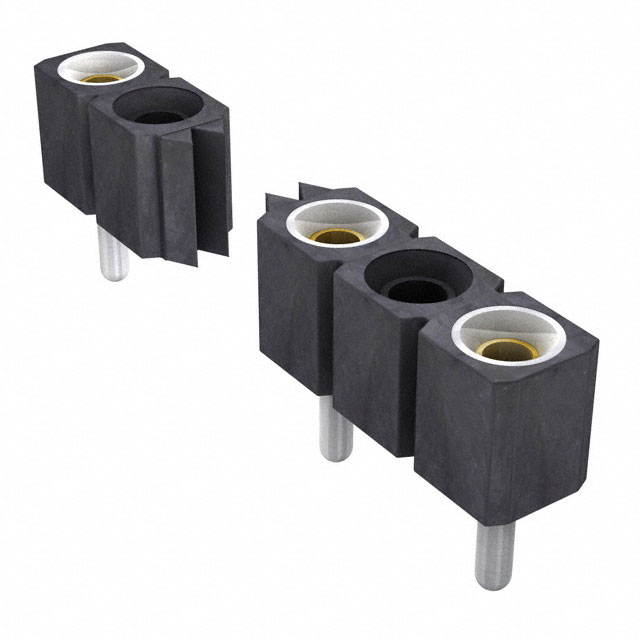

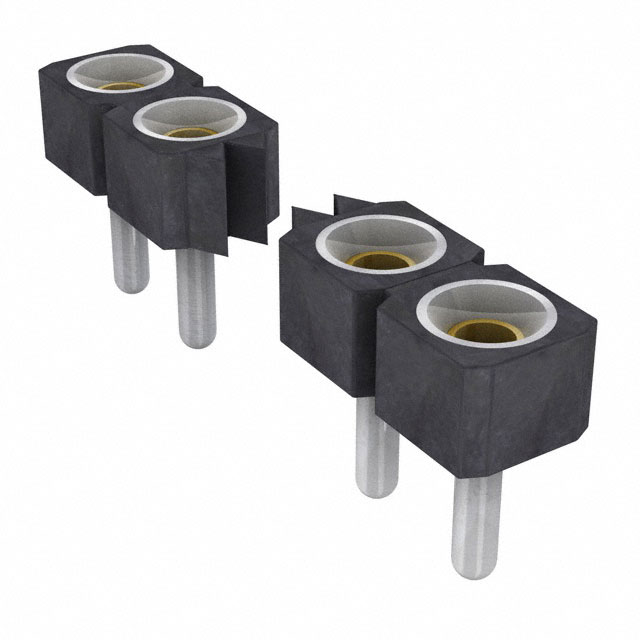

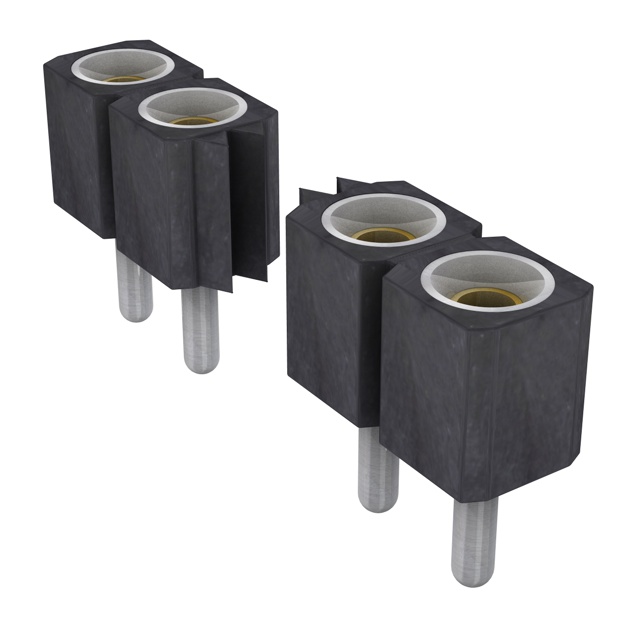

CONN SOCKET 41POS 0.1 GOLD PCB
| Part | Contact Shape | Contact Material | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish - Mating | Contact Type | Connector Type | Fastening Type | Number of Positions | Material Flammability Rating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Mounting Type | Insulation Color | Contact Finish - Post | Termination | Number of Positions Loaded | Contact Length - Post | Number of Positions [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 41 | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All | |||
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 49 | UL94 V-0 | Flash | -55 C | 125 °C | 0.095 in | 0.095 in | 2.41 mm | Through Hole | Black | Tin | Solder | All | 2.41 mm | |||
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.2 " | 5.08 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 13 | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 59 | UL94 V-0 | Flash | -55 C | 125 °C | 0.095 in | 0.095 in | 2.41 mm | Through Hole | Black | Tin | Solder | All | 2.41 mm | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All | 31 | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 61 | UL94 V-0 | Flash | -55 C | 125 °C | 0.095 in | 0.095 in | 2.41 mm | Through Hole | Black | Tin | Solder | All | 2.41 mm | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.2 " | 5.08 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 28 | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | UL94 V-0 | Flash | -55 C | 125 °C | 0.095 in | 0.095 in | 2.41 mm | Through Hole | Black | Tin | Solder | All | 2.41 mm | 47 | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 14 | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All | |||
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | 1 | Gold | Female Socket | Socket | Push-Pull | 46 | UL94 V-0 | Flash | -55 C | 125 °C | 0.107 in | 2.71 mm | 0.124 in | 3.14 mm | Through Hole | Black | Tin | Solder | All |
