83702 Series
Manufacturer: Belden Inc.
Beta
⌘K

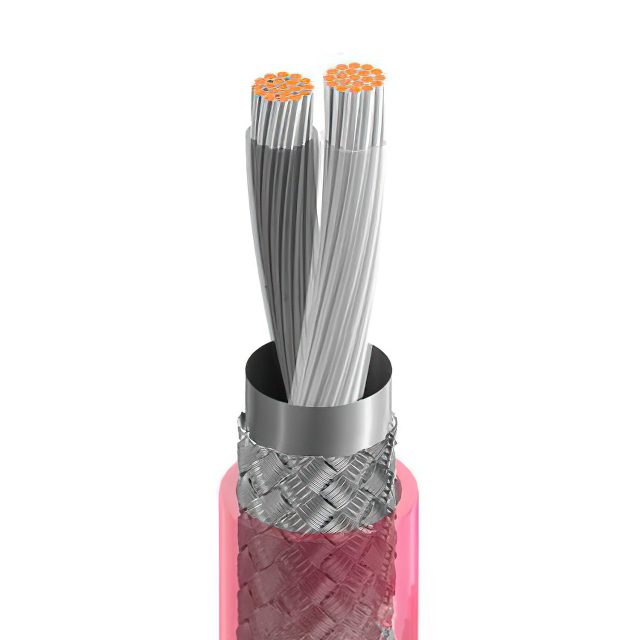

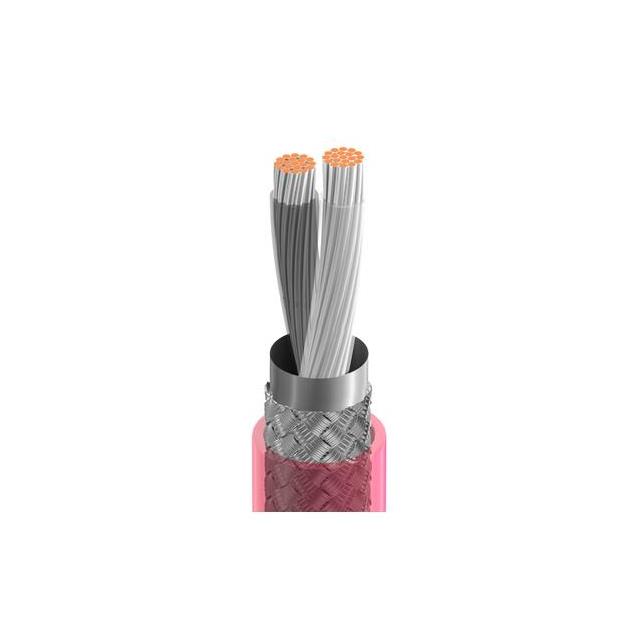

CABLE 2COND 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Length | Length | Shield Type | Jacket Color | Voltage | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | -70 °C | 200 °C | Audio Control Instrumentation | 152.4 m | 500 ft | Braid Foil | Red | 300 VDC | 16 AWG | 0.196 " 4.98 mm | UL Style CMP | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) Plenum | 2 | 19 | 29 | Multi-Conductor | 0.014 in | 0.356 mm |
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | -70 °C | 200 °C | Audio Control Instrumentation | 304.8 m | 1000 ft | Braid Foil | Red | 300 VDC | 16 AWG | 0.196 " 4.98 mm | UL Style CMP | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) Plenum | 2 | 19 | 29 | Multi-Conductor | 0.014 in | 0.356 mm |
