121NQ Series

Catalog

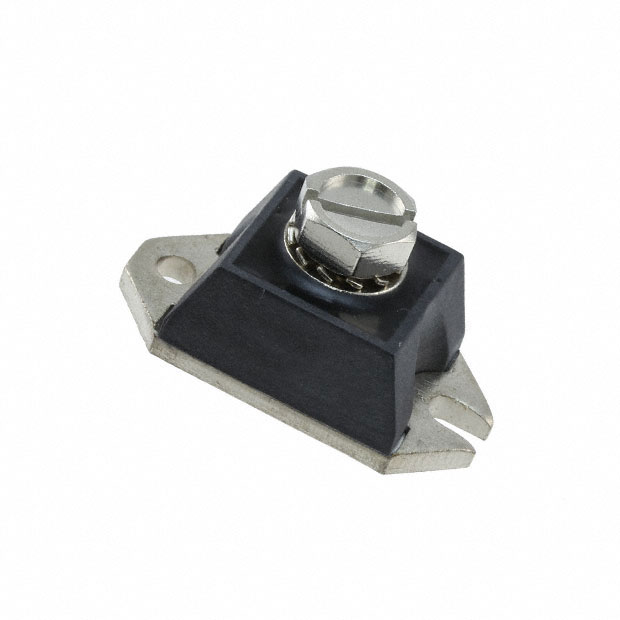

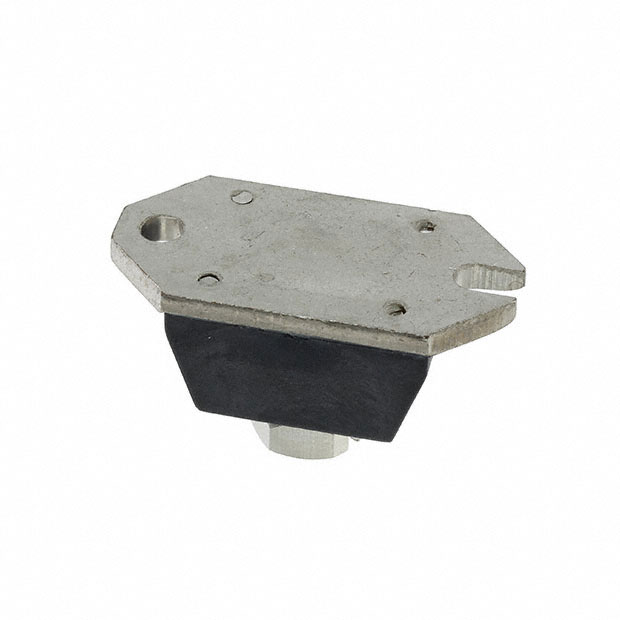

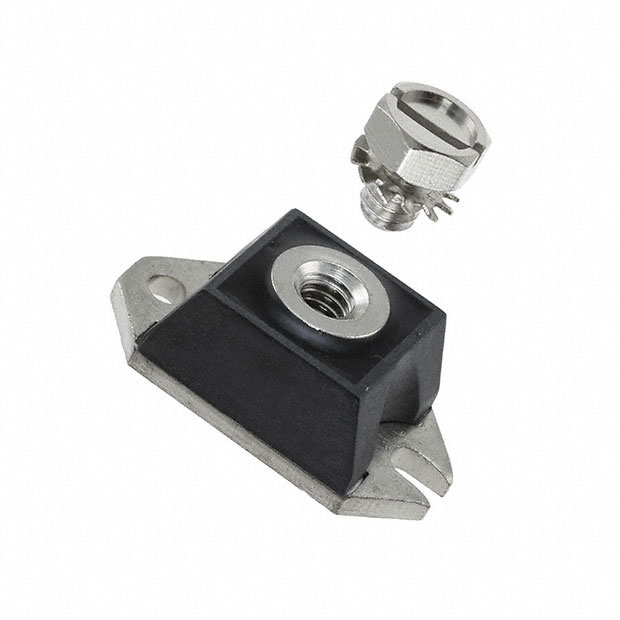

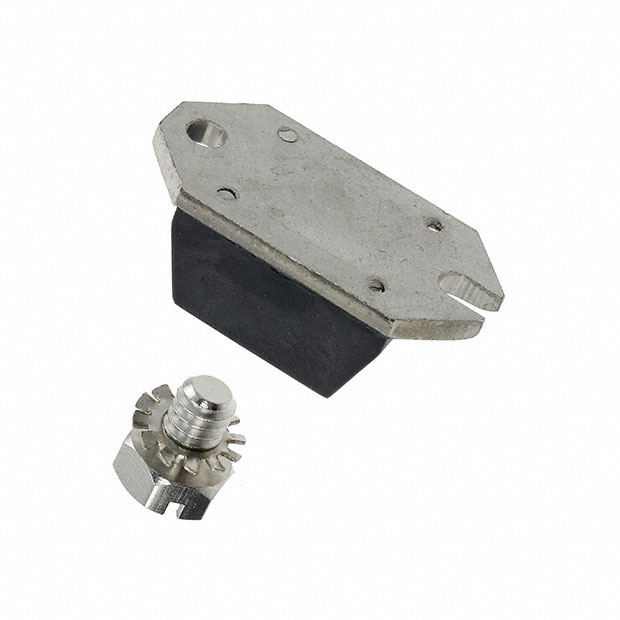

DIODE SCHOTTKY 40V 120A PRM1-1

Part	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Mounting Type	Capacitance @ Vr, F	Speed	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Average Rectified (Io)
SMC Diode Solutions 121NQ040-1	Schottky	-55 °C	150 °C	650 mV	HALF-PAK	Chassis Mount	5200 pF	200 mA 500 ns	10 mA	40 V	PRM1-1 (Half Pak Module)	120 A
SMC Diode Solutions 121NQ045-1	Schottky	-55 °C	150 °C	650 mV	HALF-PAK	Chassis Mount	5200 pF	200 mA 500 ns	10 mA	45 V	PRM1-1 (Half Pak Module)	120 A
SMC Diode Solutions 121NQ035-1	Schottky	-55 °C	150 °C	650 mV	HALF-PAK	Chassis Mount	5200 pF	200 mA 500 ns	10 mA	35 V	PRM1-1 (Half Pak Module)	120 A
SMC Diode Solutions 121NQ035R-1	Schottky	-55 °C	150 °C	650 mV	HALF-PAK	Chassis Mount	5200 pF	200 mA 500 ns	10 mA	35 V	PRM1-1 (Half Pak Module)	120 A
SMC Diode Solutions 121NQ040R-1	Schottky	-55 °C	150 °C	650 mV	HALF-PAK	Chassis Mount	5200 pF	200 mA 500 ns	10 mA	40 V	PRM1-1 (Half Pak Module)	120 A
