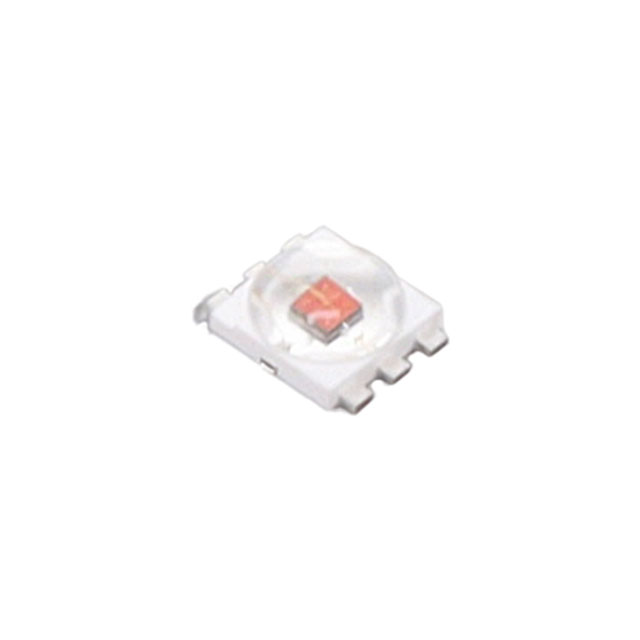

ASMT-JA30 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED AMBER 592NM 3W
| Part | Thermal Resistance of Package | Current - Test | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Temperature - Test | Color | Voltage - Forward (Vf) (Typ) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Viewing Angle | Wavelength | Package / Case | Mounting Type | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Lumens/Watt @ Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 9 °C/W | 350 mA | 700 mA | 0.157 " | 4 mm | 0.157 in | 4 mm | 25 °C | Amber | 2.1 V | 0.077 in | 1.95 mm | 165 ° | 592 nm | 6-SMD Flat Lead Exposed Pad | Surface Mount | 54 lm | 40 lm | 62 lm | 73 lm/W |
