846-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K

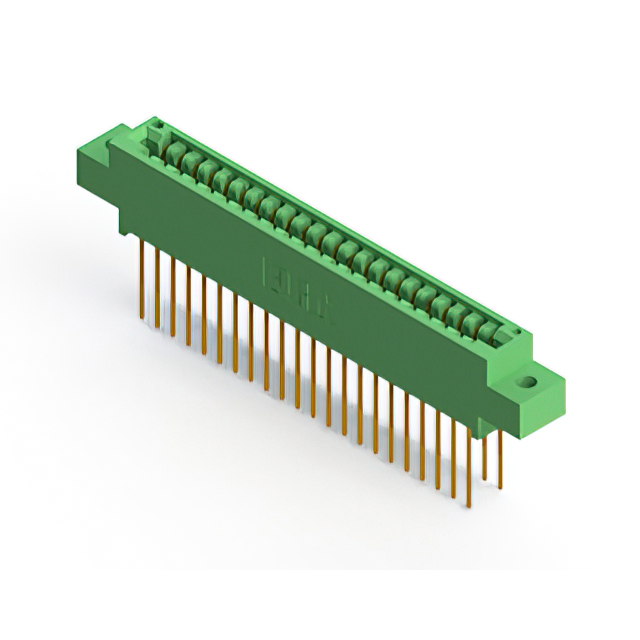

CONN EDGE DUAL FMALE 44POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Gender | Mounting Type | Pitch | Pitch | Read Out | Number of Rows [custom] | Termination | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Material | Contact Type | Card Type | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Features | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Dual | 2 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Dual | 2 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | Flush Mount M3 Threaded Insert Top Opening | Gold | Female | Board Edge Straddle Mount | 3.18 mm | 0.125 in | Dual | 2 | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin | Card Extender | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | 0.128 " | 3.25 mm | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Single | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Single Edge | 44 | 0.25 Ám | 10 Áin | 1 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Single | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Single Edge | 44 | 0.25 Ám | 10 Áin | 1 | 1 | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | 0.156 " | 3.96 mm | Gold | Female | Board Edge Straddle Mount | 3.18 mm | 0.125 in | Dual | 2 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin | Card Extender | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | Flush Mount M3 Threaded Insert Top Opening | Gold | Female | Right Angle Through Hole | 3.18 mm | 0.125 in | Dual | 2 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | M3 Threaded Insert Top Mount Opening | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Single Edge | 44 | 0.25 Ám | 10 Áin | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Single Edge | 44 | 0.25 Ám | 10 Áin | 1 | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 44 | 0.128 " | 3.25 mm | Gold | Female | Through Hole | 3.18 mm | 0.125 in | Dual | 2 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | Non Specified - Dual Edge | 22 | 0.25 Ám | 10 Áin |
