9841 Series

Catalog

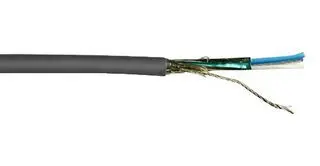

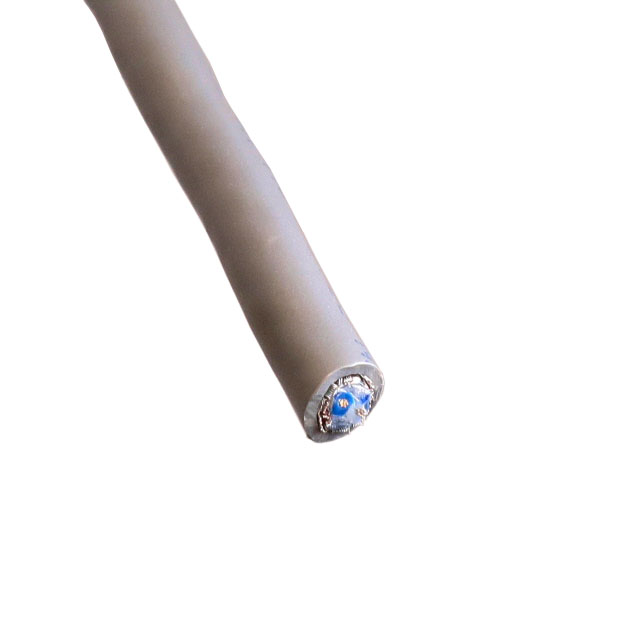

CABLE 2COND 24AWG CHROME SHLD

Part	Shield Material	Shield Coverage	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Cable Type	Usage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Length [x]	Length [x]
Belden Inc. 9841 060500	Aluminum Copper Tinned	90 % 100 %	UL Style 2919	0.035 in	0.889 mm	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	24 AWG	80 °C	-30 ░C	2	Multi-Conductor	Computer	Copper Tinned	5.89 mm	0.232 in	Braid Foil	152.4 m	500 ft	7	32 AWG	Drain Wire	Chrome
Belden Inc. 9841 06010000	Aluminum Copper Tinned	90 % 100 %	UL Style 2919	0.035 in	0.889 mm	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	24 AWG	80 °C	-30 ░C	2	Multi-Conductor		Copper Tinned	5.89 mm	0.232 in	Braid Foil	3048 m	10000 ft	7	32 AWG	Drain Wire	Chrome
Belden Inc. 9841 060100	Aluminum Copper Tinned	90 % 100 %	UL Style 2919	0.035 in	0.889 mm	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	24 AWG	80 °C	-30 ░C	2	Multi-Conductor	Computer	Copper Tinned	5.89 mm	0.232 in	Braid Foil			7	32 AWG	Drain Wire	Chrome	100 ft	30.5 m
