H2182 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN PIN 1.75MM DIA GOLD 8.1MM
| Part | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Termination | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Board Thickness | Board Thickness | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

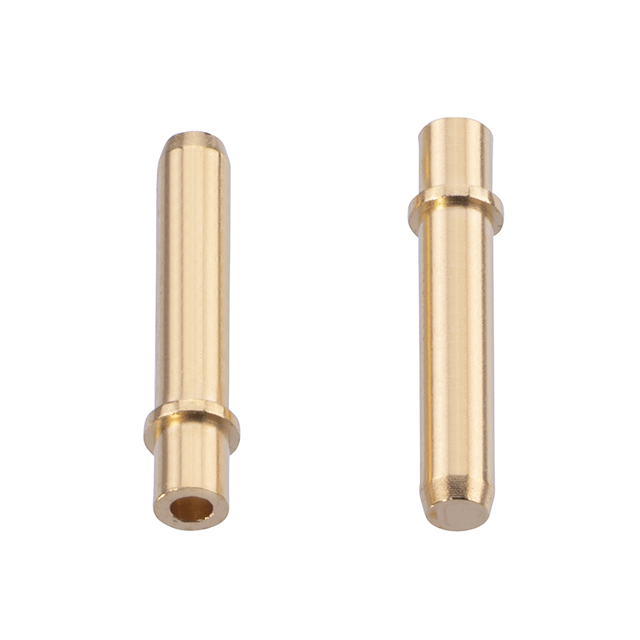

 Harwin Inc. | Single End | 1.95 mm | 0.077 " | 0.089 " | 2.25 mm | Gold | 8.1 mm | 0.319 in | Through Hole | Swage | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 10.45 mm | 0.411 in | 0.07 " | 1.78 mm | 0.07 in | 1.78 mm | Non-Insulated | 0.063 in | 1.6 mm | PC Pin | Brass |

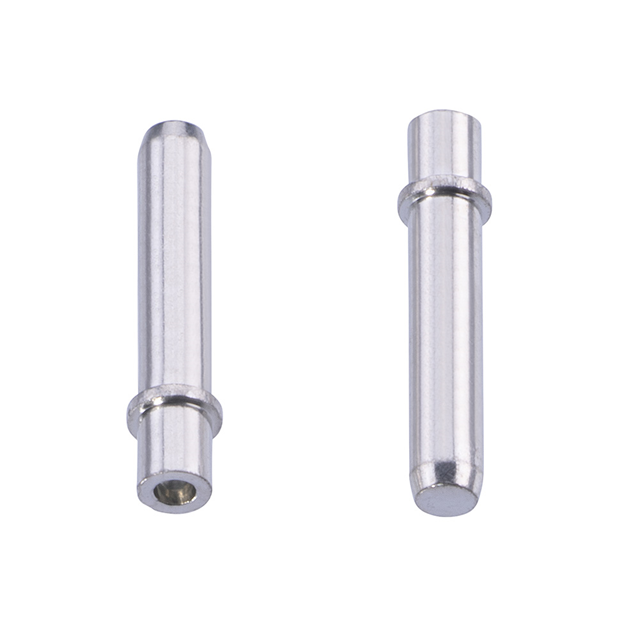

 Harwin Inc. | Single End | 1.95 mm | 0.077 " | 0.089 " | 2.25 mm | Tin | 8.1 mm | 0.319 in | Through Hole | Swage | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 10.45 mm | 0.411 in | 0.07 " | 1.78 mm | 0.07 in | 1.78 mm | Non-Insulated | 0.063 in | 1.6 mm | PC Pin | Brass |
