45-1231 Series

Trimmer Resistors - SMD

Manufacturer: EAO

Catalog

Trimmer Resistors - SMD

Catalog

Trimmer Resistors - SMD

Part	Lamp Color	Lens Size [diameter]	Termination Style	Type	Panel Cutout Shape	Ingress Protection	Lens Transparency	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Actuator Type	Actuator Marking	Mechanical Life	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Illumination Voltage (Nominal)	Color - Actuator/Cap	Illumination Type, Color	Circuit	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Panel Cutout Dimensions [diameter]	Approval Agency
EAO 45-2T07.10J0.000	Blue	29.5 mm	Screw Terminal	LED	Round	IP66 IP67 IP69K	Clear	Blue	0.88 in	22.3 mm
EAO 45-1231.21E6.000.102			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear (Red Filter/Diffuser)	LED Red	SPST-NC	10 A	On-Mom	70 °C	-25 °C
EAO 45-1231.21H8.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	230 VAC	Clear	Green LED	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.21H6.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear	Green LED	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.21G8.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	230 VAC	Clear (Yellow Filter/Diffuser)	LED Yellow	SPST-NO	10 A	Off-Mom	70 °C	-25 °C

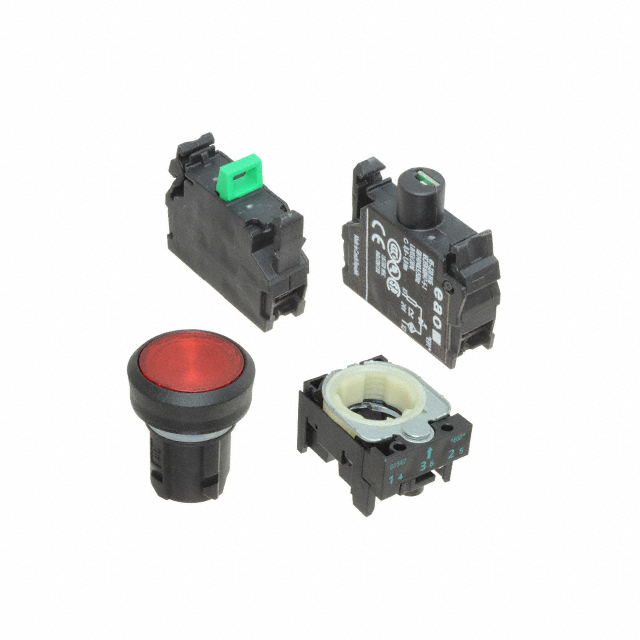

EAO 45-1231.11E6.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear (Red Filter/Diffuser)	LED Red	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1819.1C90.003.408			Spring Terminal	Standard		IP66 IP67 IP69K							1000000 Cycles		500 V	500 V				DPST-NO	10 A	On-Off-On	70 °C	-25 °C	Non-Illuminated	22.3 mm	CCC CE CSA UL VDE
EAO 45-1231.31N6.000.101			Screw Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear	LED White	SPST-NO	10 A	Off-Mom	70 °C	-25 °C
EAO 45-1231.31E6.000.402			Spring Terminal	Illuminated Standard		IP66 IP67 IP69K					Button Flush Round	No Marking	3000000 Cycles	Panel Mount Front	500 V	500 V	24 VAC/DC	Clear (Red Filter/Diffuser)	LED Red	SPST-NC	10 A	On-Mom	70 °C	-25 °C
EAO 45-2T07.30G0.000	Yellow	29.5 mm	Screw Terminal	LED	Round	IP66 IP67 IP69K	Clear	Yellow	0.88 in	22.3 mm
