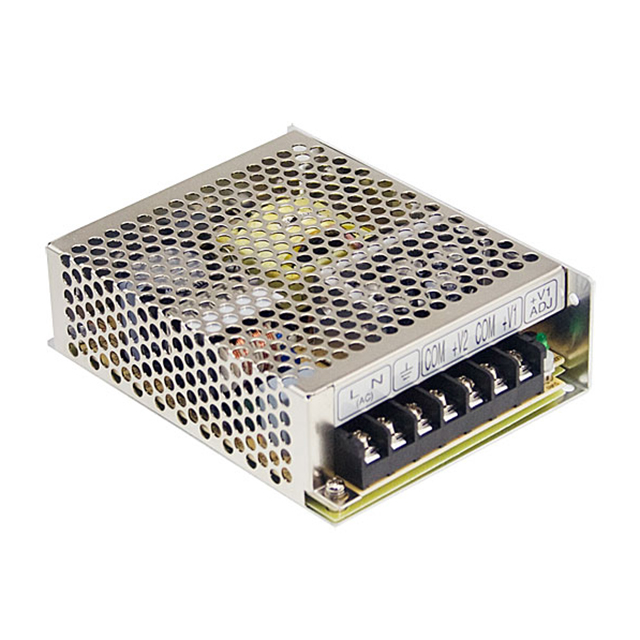

RD-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V 66W
| Part | Minimum Load Required | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 2 | Voltage - Output 1 | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Type | Voltage - Isolation | Current - Output 2 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Efficiency | Current - Output 1 | Applications | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Adjustable Output Universal Input | 70 °C | -25 °C | Chassis Mount | 12 V | 5 V | 66 W | 88 VAC 125 VDC | 264 VAC 373 VDC | Enclosed | 3000 V | 3 A | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm | CB CE cURus TUV | 79 % | 6 A | ITE (Commercial) | 2 |
